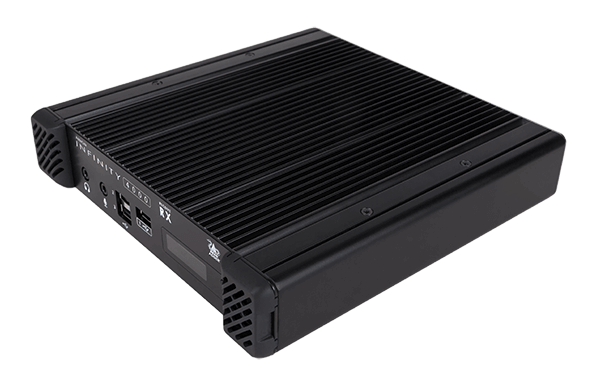

ADDERLink INFINITY - ALIF4021R

Features

5K screens
The ADDERLink INFINITY 4000 (ALIF4000) can deliver two 5K screens over a single connection.

10 bit colours and HDR10
Enables greater colour depth and supports both SDR10 and HDR10.

Multigigabit Ethernet support
Multirate (1 / 2.5 / 5/10 ) GbE support enables premium video performance over standard CAT6 cables up to 100m.

Support for 1GbE
Built-in 1GbE ports enable easy transmission of 4K to 5K video over ubiquitous 1Gb / s copper connections with 100m of standard CAT5e or CAT6 cable.

Improved resilience
Dual-multirate or 1GbE ports can be combined to enhance resilience or video capabilities.

Support for 5K resolutions
5K video resolutions for high-definition and ultra-wide video applications (5120 x 1440 at 60 Hz or 5120 x 2880 at 30 Hz).

High frame rate support
Refresh rates of up to 240 Hz are supported for HD video resolutions.

High-speed USB 2.0
Supports transparent USB communication at up to 480 Mbps for users of mass storage devices, mouse and keyboard, graphics tablets, jog shuttles, joysticks and 3D explorers.

Perfect digital audio
Using the same coding system as the other products in the ADDERLink INFINITY (ALIF) range, the digital video is spatially lossless and has 1:1 pixel mapping. This ensures that the digital video received matches that which leaves the remote computer.

Backwards compatibility
The ALIF4000 seamlessly integrates with your existing ADDERLink INFINITY setup, replacing or working with your existing ALIF endpoints.

Isochronous communication
Plug-and-play support for USB devices and third-party tools such as Blackmagic Design DaVinci Resolve colour grading panels.

Audio function
Multi-channel digital audio via DisplayPort provides an immersive, high-quality audio experience.

Onboard diagnostic tool
Diagnostic tool maximises uptime and assists with technical support requests by allowing customers to troubleshoot network issues directly from the unit.

Flexible and scalable
Each ALIF4000 unit can be configured as a simple extender or distributed KVM switch. Each receiver can see up to 16 sources or connect to the ADDERLink INFINITY Manager (AIM) to create a larger and more comprehensive matrix.

Technical details

Video resolutions

• Supports resolutions up to 5120x2880 including UHD or DCI and refresh rates up to 240 Hz
• Up to 10-bit colour SDR and HDR10

Audio

• Analogue Line In / Out 2-channel 16 bit 48 kHz 1 V RMS In / 1 V RMS Out
• 2x DisplayPort audio in linear PCM with 2,6 or 8 channels

USB

• 4 USB 2.0 ports with USB True Emulation from Adder to support keyboard, mouse and touch
• One connection of transparent Hi-Speed USB 2.0
• USB device as: 7 or 13 port hub

Ethernet

• 2x 10, 5, 2.5 and 1 GbE when using SFP-CATX-MR SFP
• 2x 10GbE (no 10/100/1000 support on ber) via SFP
• 2x 1GbE (no 10/100 support) via CATX ports

Transmitter connections (Tx)

• Computer: 2x DisplayPort, 2x USB type B, 2x 3.5 mm audio jacks, 1x DB9 jack
• Ethernet: 2x 8p8c (RJ45), 2x SFP + cages
• Power supply: 3-pole Kycon socket

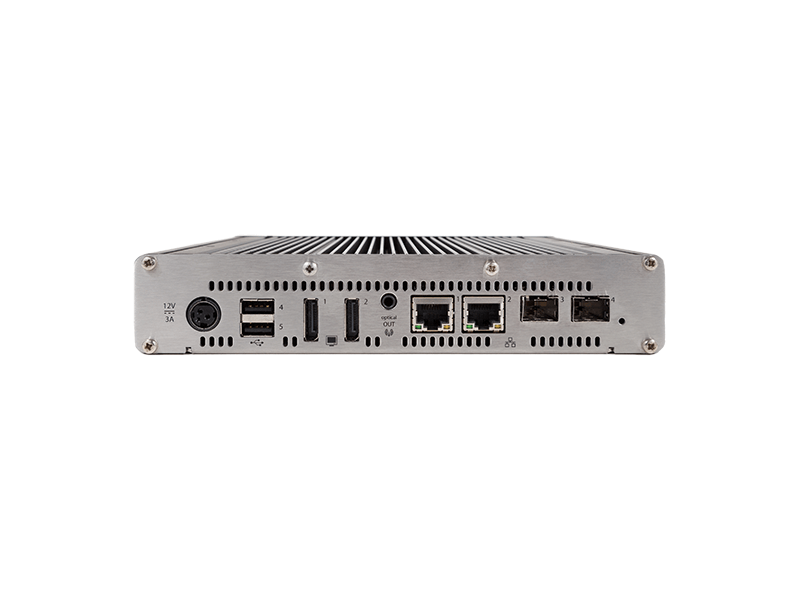

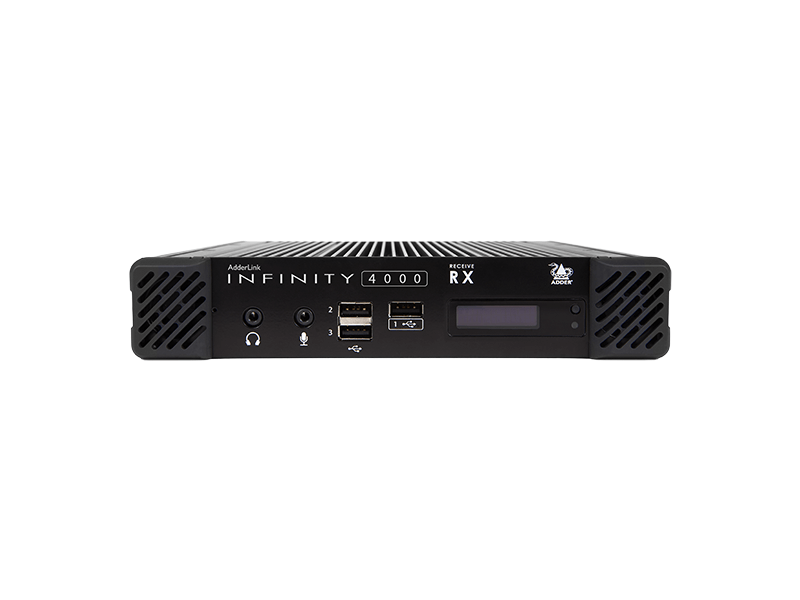

Receiver connections (Rx)

• Desktop: 2x DisplayPort, 5x USB type A, 2x 3.5 mm audio jacks, 1x 3.5 mm SPDIF jack
• Ethernet: 2x 8p8c (RJ45), 2x SFP + cages
• Power supply: 3-pin Kycon socket

Dimensions

• (L) 210 mm / 8.3 x (W) 215 mm / 8.5 x (D) 40 mm / 1.6

Materials

• Aluminium and steel construction

Power

• External power supply: 12VDC, 5A
• Typical power consumption: 20W

Operating temperature

• Operating temperature: 0 to 40 °C / 32-104 F
• Storage temperature: 0 to 40 °C / 32-104 F
• Storage and operating relative humidity: 10-90% non-condensing
• Altitude: <2000m

Packaging box

• Dimensions: (L) 285 mm / 11.2 x (W) 245 mm / 9.6 x (D) 145 mm / 5.7
• Weight 2.5 kg

Recommendations for cable types

• ALIF4021T 159,000 hrs
• ALIF4021R 165,000 hrs

Approvals / Compliance

• CE and FCC: For the complete list, see the compliance web page.
