ADDERLink INFINITY - ALIF3000R
Producentens varenummer:
ALIF3000R
Vores artikelnummer:
490503
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Product information "ADDERLink INFINITY - ALIF3000R"
The ADDERLink INFINITY 3000 (ALIF3000) provides real-time access to unlimited physical and virtual machines (VM) through a single human-machine interface (HMI).
Optional accessories:
- Requires transmitter (transmitter unit)
- Dual-head, video, audio and USB over a single fibre connection.
- Unlimited access to virtual and physical machines
- Pixel perfect colour accuracy
- Bi-directional analogue audio
- USB True Emulation from Adder for fast switching
Optional accessories:
- RMK12: Two 19" units (1 U) for rack mounting
- RMK12-BP: Cover plate for rack mounting
- VSCD10A: Display port video cable 2m
- VSC22: Audio cable 2m (3.5mm)
- SFP-SM-LC-10G: 10GbE single mode fibre SFP module
- SFP-MM-LC-10G: 10GbE multi-mode fibre SFP module
- SFP-CATX-MR: multirate copper SFP module for 1, 2.5, 5 and 10GbE
- VSC24: USB cable 2m (type A to B)
| Graphic Port: | DisplayPort |
|---|---|
| Keyboard & Mouse: | USB |
Features
Dual head, video, audio and USB 2.0 over a single connection
The ALIF3000 can deliver one 2560 x 1600 or two 1920 x 1200 displays over a single fibre connection.
Unlimited access to physical and virtual machines
Users can seamlessly take control of unlimited sources in a virtualised and physical environment from a single workstation using standard VDI protocols.
Pixel-perfect image
The ALIF3000 provides pixel-perfect image quality over 1 Gbit Ethernet links.
Backwards compatibility
The ALIF3000 can be added to an existing ADDERLink INFINITY matrix to provide real-time KVM and virtual machine access with the security, reliability and flexibility benefits of traditional IP KVM solutions.
Digital KVM matrix

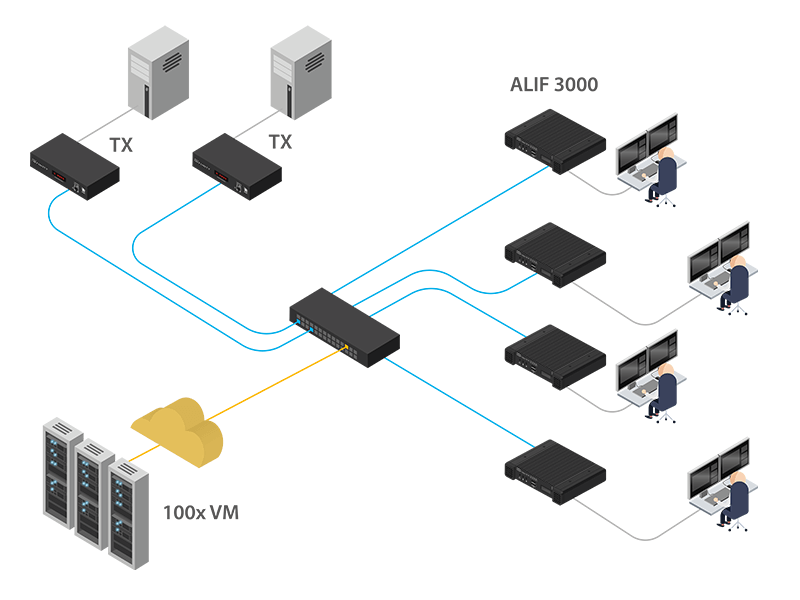

By adding the ADDERLink INFINITY Management System (AIM), you can turn multiple point-to-point extenders into a matrix system that allows any workstation to connect to any network-connected computer.
Security
The ALIF3000 is a closed and hardened KVM system with access to virtual machines. Unauthorised software cannot be loaded onto the units without administrator approval.
Plug and Play
The ADDERLink INFINITY range comes in a zero configuration state, so they work as soon as they are connected, with no drivers or software required.
USB True Emulation from Adder
USB 2.0 enables connection to any USB user interface device from mice and keyboards to graphics tablets, jog shuttles, joysticks and 3D explorers.
Power
Based on Intel's successful X-86 architecture, the ALIF3000 is a robust and resilient solution designed for use in the most demanding scenarios.
Dual head, video, audio and USB 2.0 over a single connection
The ALIF3000 can deliver one 2560 x 1600 or two 1920 x 1200 displays over a single fibre connection.
Unlimited access to physical and virtual machines
Users can seamlessly take control of unlimited sources in a virtualised and physical environment from a single workstation using standard VDI protocols.
Pixel-perfect image
The ALIF3000 provides pixel-perfect image quality over 1 Gbit Ethernet links.
Backwards compatibility
The ALIF3000 can be added to an existing ADDERLink INFINITY matrix to provide real-time KVM and virtual machine access with the security, reliability and flexibility benefits of traditional IP KVM solutions.
Digital KVM matrix
By adding the ADDERLink INFINITY Management System (AIM), you can turn multiple point-to-point extenders into a matrix system that allows any workstation to connect to any network-connected computer.
Security
The ALIF3000 is a closed and hardened KVM system with access to virtual machines. Unauthorised software cannot be loaded onto the units without administrator approval.
Plug and Play
The ADDERLink INFINITY range comes in a zero configuration state, so they work as soon as they are connected, with no drivers or software required.
USB True Emulation from Adder
USB 2.0 enables connection to any USB user interface device from mice and keyboards to graphics tablets, jog shuttles, joysticks and 3D explorers.
Power
Based on Intel's successful X-86 architecture, the ALIF3000 is a robust and resilient solution designed for use in the most demanding scenarios.
Techncial details
Approvals / Compliance
Approvals / Compliance
- CE
- FCC
- Operating temperature: 0 to 40ºC / 0 to 104ºF
- Storage temperature: 0 to 60ºC / 32 to 140ºF
- Storage and operating relative humidity: 10-90% non-condensing
- Altitude: <2000 m
- External power: 12 VDC, 5A
- Typical power consumption: 20W BTU: 68.24 BTU/h
- Dimensions: (L) 210 mm / 8.3 "x (W) 215 mm / 8.5" x (D) 40 mm / 1.6 "
- Weight: 1.8 kg
- Aluminium and steel construction

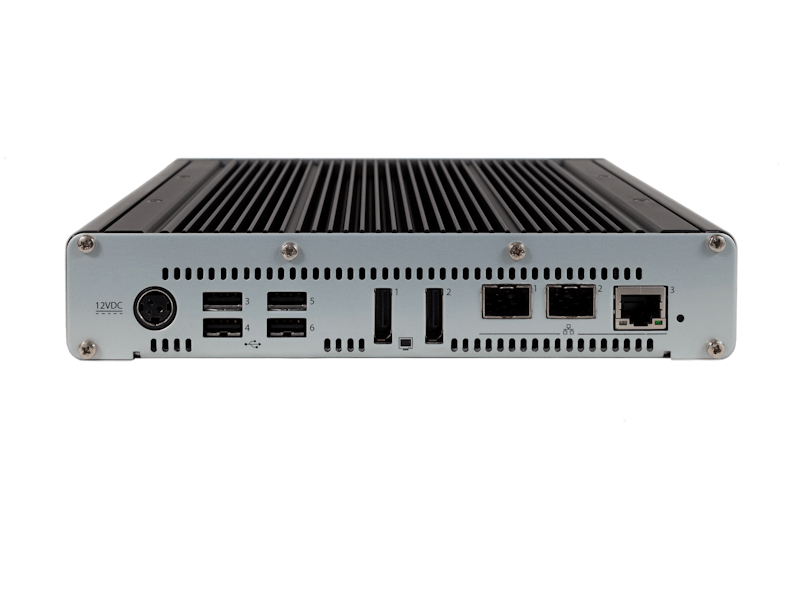

- Desktop: 2 x display connector, 5 x USB type A, 3 x 3.5 mm audio jacks
- Ethernet: 1 x 8p8c (RJ45), 2 x SFP+
- Power supply: 3-pin Kycon socket
- 4x USB 2.0 ports with USB True Emulation to support keyboard, mouse and touch.
- Supports 1 x 2560 x 1600 up to a maximum refresh rate of 60 Hz
- Can decode all streams from ADDERLink INFINITY transmitting devices: ALIF100T ALIF1002T, ALIF2002T, ALIF2020T to a maximum of one 2560 x 1600 or two 1920 x 1200 screens.
- The ALIF3000R will only decode 1x 2560x1600 or 2x 1920x1200 from an ALIF4021T. Please note that the ALIF4021T must have a bandwidth of 1 GbE per link.
- Analogue Line In / Out 2-channel 16 Bit 48 kHz 1V RMS In / 1V RMS Out
- 1 GbE (10/100/1000 support)
- Dimensions: (L) 285 mm (11.2 in. (W) 245 mm / 9.6 in. (D) 145 mm / 5.7 in. Weight: 2.5 kg / 5.5 lb.
Skip product gallery
Tilbehør
ADDER - RMK12
Produktets levetid er udløbet!
Opfølgende produkt:
We will find a suitable replacement product for your requirements - please contact our sales department.
