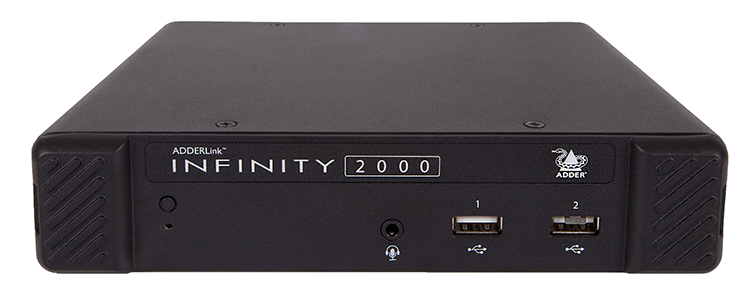

ADDERLink INFINITY - ALIF2102R
Dual-head digital video, audio and USB2.0 over 1GbE IP network
Producentens varenummer:
ALIF2102R
Vores artikelnummer:
490534
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktets levetid er udløbet!
Opfølgende produkt:
Produktinformation "ADDERLink INFINITY - ALIF2102R"
The ADDERLink ® INFINITY 2102 is a high performance IP KVM (Keyboard, Video and Mouse) extender that is part of the ADDERLink ® INFINITY matrix solution. This enables the relocation of critical computer hardware to a secure and temperature-controlled environment away from the user's workstation; while maintaining a pixel-perfect desktop experience.
Also available with SFP ports: ADDERLink-INFINITY-2122-Receiver
- Requires Transmitter Unit - ADDERLink INFINITY - ALIF2102T
Also available with SFP ports: ADDERLink-INFINITY-2122-Receiver
Features
- Plug-and-play
- 100m/328ft extension distance on a single CATx; longer extension distances over a standard IP network
- Up to 500m/1640ft to 20km/12mi over a single fibre length
- Video resolutions up to 1x 2560x1600 @60Hz or 2x 1920x1200 @60Hz
- Supported USB mass storage devices as well as keyboard, mouse, tablet and touch
- Support for Mac Pro®
- Redundant network operation
- Dual touchscreen support, including on-screen keyboard and floating start button
Technical details
Operating system and software compatibility
Receiver (RX)
Operating system and software compatibility
- Software: All commonly known software and operating systems, including Windows ® , Linux ® , macOS ® and Sun OS.
- Hardware: RS232 is supported via USB-to-RS232 accessories.
- System supports up to 1x 2560x1600@60Hz or 2x 1920x1200 @60Hz
- Supports USB2.0 devices (low, full and high speed). Security feature allows blocking of non-HID devices
- Isochronous devices are not supported (e.g. USB audio or video devices)
- USB audio 2-channel 16 bit 48 KHz (bidirectional)
- RS232 or other serial standards can be transferred between units at a maximum baud rate of 115,200 using serial-to-USB converters

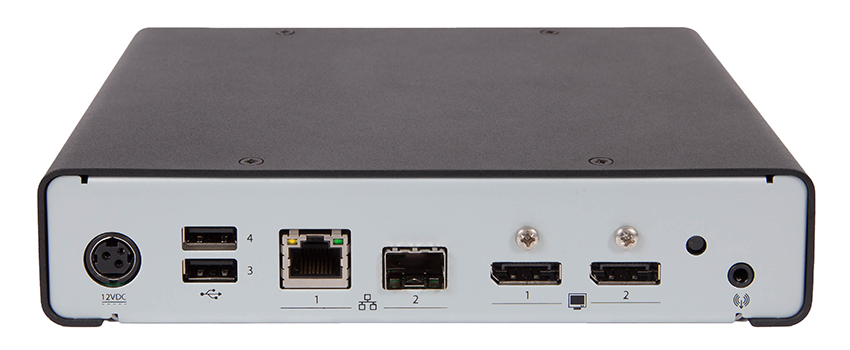

- 2x DisplayPort connectors, 1x 3.5 mm jack for audio-in, 1x USB type B, 1x USB type A for aux connectors, 1x 8p8c and 1x SFP for 1GbE network connections
- 2x DisplayPort connectors, 1x 3.5 mm jack for audio out, 1x 3.5 mm jack for headset/microphone, 4x USB type A, 1x 8p8c and 1x SFP for 1GbE network connections
Receiver (RX)
- 1U compact housing, robust metal construction
- Dimensions: 39 mm/1.5 inch (H) x 186 mm/7.3 inch (W) x 150 mm/5.9 inch (D)
- Weight: 1.1 kg/2.4 lbs
- 1U compact housing, robust metal construction
- Dimensions: 39 mm / 1.5" (H) x 136mm / 5.3 (W) x 150 mm / 5.9" (D)
- Weight: 0.8 kg / 1.7Ibs
- CE, UKCA, FCC, ICES, cULus
- External power supply
- Input: 100-240 V AC 47/63 Hz
- Output: 12 V 1.5 A (18 W)
- Typical power consumption: 7 W
- Operating temperature: 0 to 40 °C/32 to 104 °F
- Storage temperature: 0 to 40 °C/32 to 104 °F
- Relative humidity during storage and operation: 10-90 % non-condensing
