ADDERLink - ALD-IPEPS
KVM over IP Unit (DVI & USB)
Producentens varenummer:
ALD-IPEPS
Vores artikelnummer:
490331
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
-
Beskrivelse ADDERLink digital Ipeps allow you to remotely access and control your critical computer hardware via your standard IP netwo… Mere
-
Egenskaber Features RealVNC Server with RFB 3.3 Support Up to 16 users can securely access different computers outside your network vi… Mere
-
Tekniske detaljer Technical details Video Supports standard PC, Sun and Mac video modes up to 1600 x 1200 resolutions with scalable viewer.… Mere
-
Datablad
-
Tilbehør
Produktinformation "ADDERLink - ALD-IPEPS"

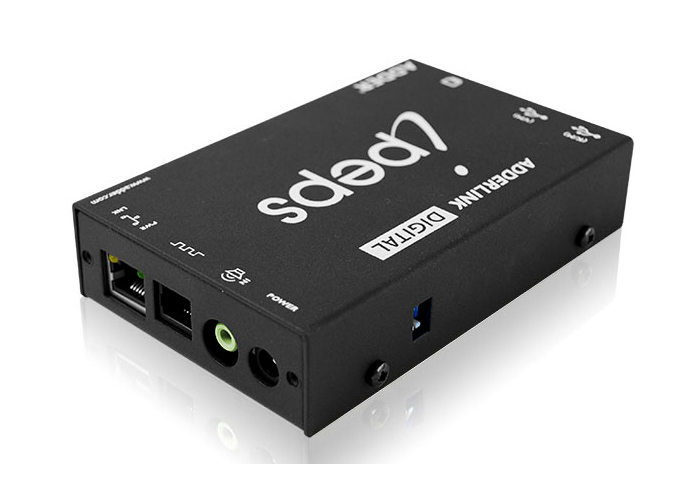

ADDERLink digital Ipeps allow you to remotely access and control your critical computer hardware via your standard IP network. KVM connections are DVI and USB. Computers outside the network can be securely accessed remotely using RealVNC client software.
Optional accessories:
- Controlled access: the unit can be accessed by up to four users simultaneously
- User management: 16 user profiles can be created with defined access rights
- Built-in security measures: Compliant with universal enterprise security standards (AES 256-bit encryption and RSA 2048-bit public key authentication) with additional encryption provided by RealVNC
- Compact and efficient: A single USB connection occupies Zero U in your rack.
Optional accessories:
- X-RMK-CHASSIS: Rack-mount housing
- VSCD11: HDMI to DVI-D video cable
Classification: | SMB |
---|---|
Graphic Port: | DVI, HDMI |
Network: | Single LAN |
Power Supply: | Single AC |
Features
RealVNC Server with RFB 3.3 Support
Up to 16 users can securely access different computers outside your network via a remote connection.
High-performance video via VNC
Real VNC allows video resolutions up to 1900 x 1200 as it is free from the limitations of HTTPS.
USB and virtual media support
Designed as a conduit over which data can be transferred, allowing files to be transferred via IP to the IPEPS and to the target computer via a virtual USB media port.
Choice of power source
Can be powered via two USB cables or independently from an external 5 V power source.
Independent operation
Maintain full control, even during start-up, BIOS level or computer crash condition. This works even when the controlled equipment is not operational.
ADDER.NET Enterprise Management Software
Provides a centralised, secure and intuitive user interface for user access management, allowing up to 16 user profiles to be created with defined access rights.
RealVNC Server with RFB 3.3 Support
Up to 16 users can securely access different computers outside your network via a remote connection.
High-performance video via VNC
Real VNC allows video resolutions up to 1900 x 1200 as it is free from the limitations of HTTPS.
USB and virtual media support
Designed as a conduit over which data can be transferred, allowing files to be transferred via IP to the IPEPS and to the target computer via a virtual USB media port.
Choice of power source
Can be powered via two USB cables or independently from an external 5 V power source.
Independent operation
Maintain full control, even during start-up, BIOS level or computer crash condition. This works even when the controlled equipment is not operational.
ADDER.NET Enterprise Management Software
Provides a centralised, secure and intuitive user interface for user access management, allowing up to 16 user profiles to be created with defined access rights.
Technical details
Video
Supports standard PC, Sun and Mac video modes up to 1600 x 1200 resolutions with scalable viewer.
Approvals / Compliance
USB1.1 (low and full speed)
Cable requirements
CATx
Operating temperature
0 - 40 ° C / 32 to 104 ° F.
Connections - Remote Unit
IPEPS 120 mm / 4.72 (W), 27 mm / 1.06 (H), 75 mm / 2.95 (D), 0.34 kg/0.76 pounds
Power
All known software and operating systems, including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare, etc.
Video
Supports standard PC, Sun and Mac video modes up to 1600 x 1200 resolutions with scalable viewer.
Approvals / Compliance
- CE
- FCC
USB1.1 (low and full speed)
Cable requirements
CATx
Operating temperature
0 - 40 ° C / 32 to 104 ° F.
Connections - Remote Unit

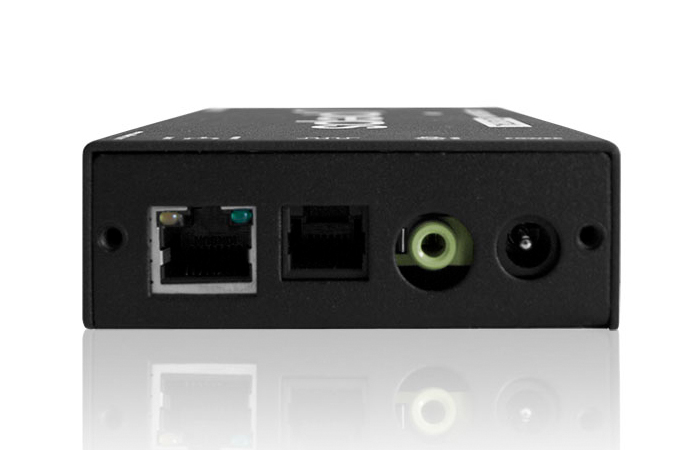

- Video: DVI Single Link USB2.0 Type B Connectors.
- Ethernet: RJ45 10/100 Auto Sensing
- RS232: 6p6c connector
IPEPS 120 mm / 4.72 (W), 27 mm / 1.06 (H), 75 mm / 2.95 (D), 0.34 kg/0.76 pounds
Power
- Two USB cables or independent 5 V external power source 100-240 VAC 50 - 60 Hz
- External power supply 100-240 VAC, 47 / 63Hz-5V - 2.5 amps
All known software and operating systems, including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare, etc.
Tilbehør
ADDER - X-RMK-CHASSIS
Rackmount chassis kit for ADDERLink X-series and ADDERLink-ipeps
Tilbehør
ADDER - X-RMK-CHASSIS
Rackmount chassis kit for ADDERLink X-series and ADDERLink-ipeps
