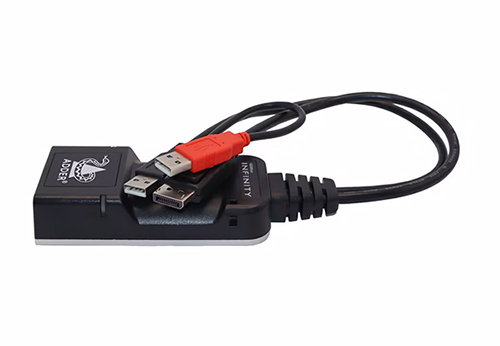

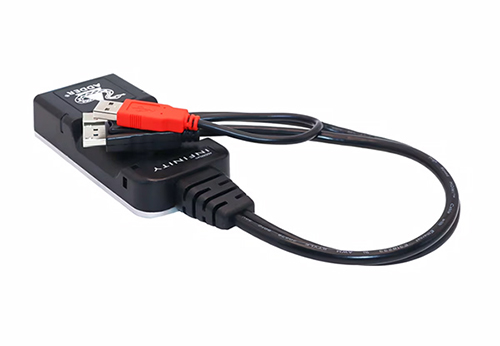

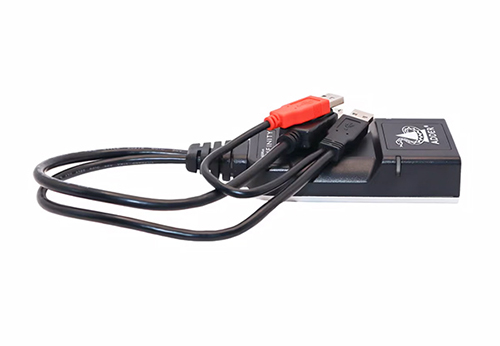

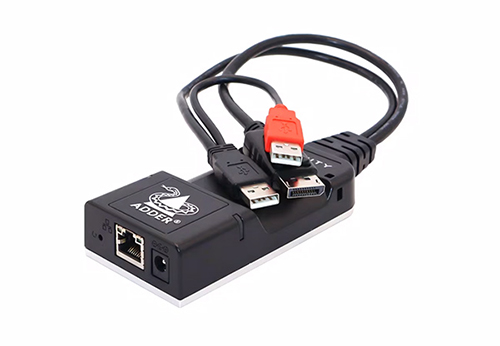

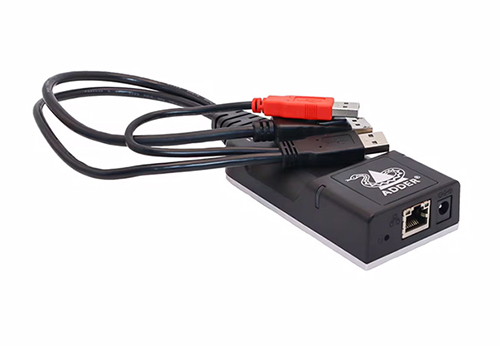

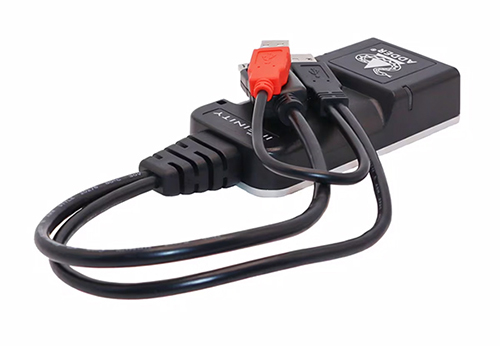

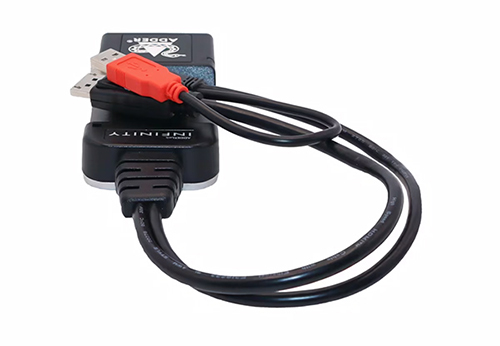

ADDER - ADDERLink INFINITY 102T DP
High performance ZeroU IP KVM DP dongle for extension or matrix of video, audio and USB over a single cable.
Producentens varenummer:
ALIF102T DP
Vores artikelnummer:
490595
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "ADDER - ADDERLink INFINITY 102T DP"
ADDERLink® INFINITY 102T (ALIF102T) is an IP KVM extender delivering video, audio and USB over a single cable in a ZeroU form factor. Part of the ADDERLink INFINITY range, the ALIF102T enables the use of standard IT infrastructure to extend computers away from the user environment.
PACKAGE CONTENTS:
- 1x ALIF102T unit
- 1x Quick start guide
| Graphic Port: | DisplayPort |
|---|---|
| Interface: | USB |
Features
- ZeroU Form Factor
- Perfect Digital Video, Real-Time Control
- USB 2.0 with Class Control
- Support for Dithered Video
- Flexible and Scalable Extender or Switch
- ADDERLink® INFINITY Matrix
- Digital Audio
- EDID Management
- USB Powered
- Plug and Play
Specifications
Video Information (1 Screen)
- Maximum Resolution (1 Screen): 2560 x 1600
- Frame Rate (1 Screen): 60
- Color Depth (1 Screen): 8 bpc
Computer Connections
- USB A: 2x 2.0, True Emulation,Full Speed,Low Speed,High Speed
- Full Size DisplayPort: 1x 1.1 (dual mode)
Link Ports
- 8p8c (RJ45): 1x
Audio Connections
- Audio Type: Digital
- Channels: 2x
- Audio Direction: Bi-directional
- Audio Additional Information: Digital Audio 2 channel linear PCM
- Size (bit): 16
- Speed (kHz): 48
- Audio In Port: 1x USB
Cable Requirements
- CAT5e and above: 100 / 328.1
Network Support
- Bandwidth: 1GbE
- 10/100 Support: No
Environmental
- Operating Temperature Range °C / °F: 0 - 40 °C / 32 - 104 °F
- Storage Temperature °C / °F Range: 0 - 40 °C / 32 - 104 °F
- Operating Humidity (%): 10% - 90% (non-condensing)
- Storage Humidity (%): 10% - 90% (non-condensing)
- Altitude m/ft: 2,000 / 6561.7
- Mean Time Between Failure (MTBF): 1,300,000 h
- MTBF Standard: Telcordia SR332 Issue 4 March 2016 Calculated @ 55C
Power Source
- USB powered: 2x
- 5V: 1x
- Power Additional Information: USB power: 2x USB2.0 (2x 500mA @5V) 5W• External power: 5VDC, 1A, (LPS)
Power Consumption
- Maximum Power (Watts): 5
- Typical Power (Watts): 3
Physical Design
- Construction Material: ABS and aluminium construction
- U size: 0
- Width (mm) / (in.): 55 / 2.2
- Height (mm) / (in.): 25 / 1
- Depth (mm) / (in.): 110 / 4.3
- Flying Lead Length (mm): 300
- Weight (kg) / (lb): 0.2 / 0.4
Compatibility
- OS Compatibility: All known operating systems
- System Requirements: Requires source to be DisplayPort Dual-Mode (DP++) compliant
Approvals and Standards
- Approvals: CE, FCC, ICES, UKCA
- Standards: ANSI 63.4, EN55032 /CISPR 32, EN55035/CISPR 35, EN61000-3-2, EN61000-3-3, EN63000, FCC pt15B
- Other: Cal Prop 65, China ROHS, EU REACH, UK REACH
