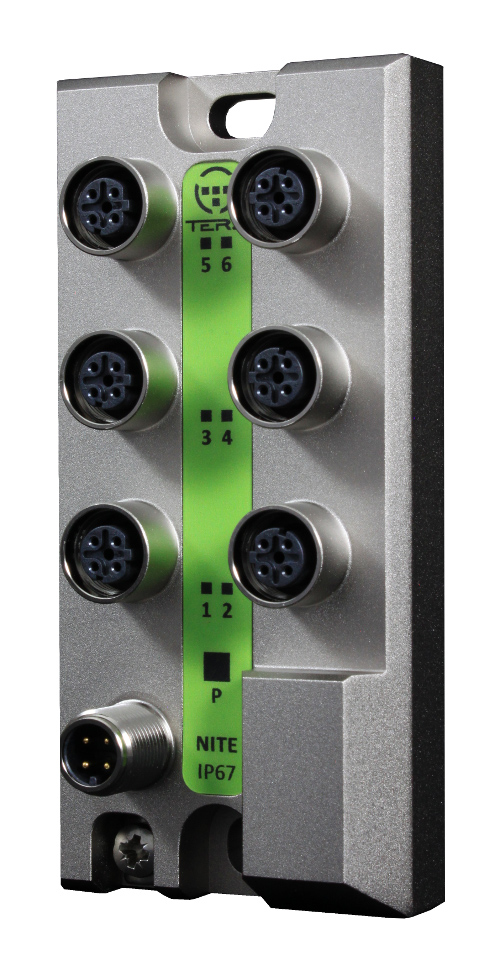

TERZ NITE-XS6-1100
6 Port M12 Unmanaged Industrial Ethernet Switch - IP65/67
Producentens varenummer:
NITE-XS6-1100
Vores artikelnummer:
340052
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "TERZ NITE-XS6-1100"

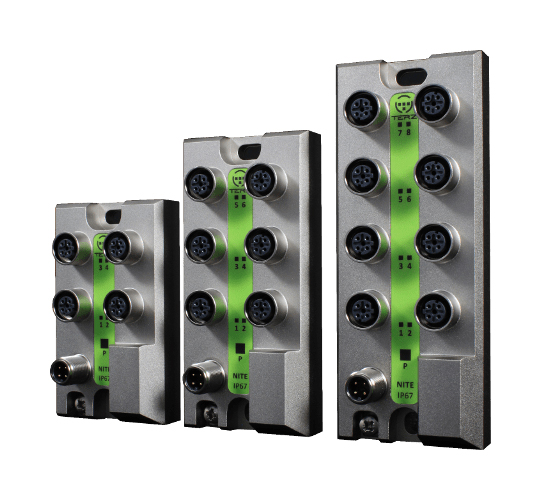

TERZ NITE-XS Fast Ethernet Series
The world's most compact industrial M12 switches are perfectly suited for use in passenger trains, buses, commercial vehicles and agricultural machinery. Dust-tight and protected against water penetration, the TERZ Industrial Ethernet Switches save valuable space in the control cabinet. With excellent electrical properties (DIN EN 50121-3-2), a dielectric strength of 2.25 kVDC, high shock and vibration resistance (DIN EN 61373) and fire protection according to DIN EN 45545, the NITE-XS comply with DIN EN 50155. Thanks to the extended temperature range and two different frame forwarding/blocking variants (LLDP/PTCP), all industrial applications and PROFINET applications are optimally supported.
The world's most compact industrial M12 switches are perfectly suited for use in passenger trains, buses, commercial vehicles and agricultural machinery. Dust-tight and protected against water penetration, the TERZ Industrial Ethernet Switches save valuable space in the control cabinet. With excellent electrical properties (DIN EN 50121-3-2), a dielectric strength of 2.25 kVDC, high shock and vibration resistance (DIN EN 61373) and fire protection according to DIN EN 45545, the NITE-XS comply with DIN EN 50155. Thanks to the extended temperature range and two different frame forwarding/blocking variants (LLDP/PTCP), all industrial applications and PROFINET applications are optimally supported.
| Connection: | 10 /100 |
|---|---|
| Fieldbus options: | PROFINET |
| IP Level: | IP65, IP67 |
| Port Number: | 6 Ports |
| Temperature Range: | -40°C to 70°C |
| Management: | unmanaged |
Features
- Flexible use with 24 VDC
- IP65/67 metal housing
- Ultra compact robust design
- Inrush current limiting
- Temperature range -40 to +70°C
- DIN EN 50155 railway compliant
- Reverse polarity protected
- PROFINET suitable
Techncial details
General
Switch: IEEE802.3 Store and Forward; non-blocking wire speed
Auto-negotiation, auto-MDI-X, auto-polarity: Yes
Frame size: 2.048 bytes
MAC table size: 2,000 addresses
Quality of Service: Yes - 4 priority queues
Energy Efficient Ethernet: No
Flow Control: No
PROFINET suitable: Yes
Power supply / electronics
Rated voltage: Vin 24 VAC / 24 VDC
Perm. voltage range: 8 to 28 VAC / 9 to 36 VDC
Connection type: Vin M12 A-cod. (+ -) | M4 threaded hole (FE)
Red. Power supply: Yes, two full bridge circuits
Supply circuit: SELV DIN 60950 (circuit breaker 10 A)
Inrush current limiting: Yes
Input fuse: Yes, switching capacity 50 A @ 125VAC / VDC
Reverse polarity protection: Yes
Bypass voltage failure: 10 ms DIN 50155
PCB Conformal Coating: Yes
Protection Class: III
Insulation: 2.25 kVDC; Vin ↔ Ethernet Ports | Vin ↔ Housing
Mechanical properties
Housing material: Anodised aluminium, stainless steel
Mounting type: M6 hole for wall mounting, round-head screw
Protection class (operation): IP65/67
Ethernet interfaces
IEEE standards: 802.3 10BaseT, 802.3u 100BaseT(X)
Isolation: 2.25 kVDC; Ethernet Port ↔ Housing | Port ↔ Port
Connection type: M12
Port count | Speed: 4,6,8 ports | 10/100 Mbit/s
Cable length: 100 m (twisted pair, 0.14 mm² - 0.22 mm², Cat 5)
EMC and environmental specification
Operating temperature: -40°C to 70°C
Storage temperature: -40°C to 85°C
Relative humidity (operating): 0%-95% (non-condensing)
Relative humidity (storage): 0%-95% (non-condensing)
Air pressure (operating): 2,000 m (795 hPa)
EMC immunity: DIN EN - 50121-3-2, 61000-6-2, 55024
EMC interference emission: DIN EN 50121-3-2, 61000-6-4, 55032
Mechanical stability: DIN EN 61373
Fire protection: DIN EN 45545
Declaration of conformity and certifications
CE, DIN EN 50155, DIN EN 60950-1, E-Mark - (E1/R10)
Status and diagnostic indicators
LED: Power | Link/Activity per port
Products
NITE-XS Push Pull - Industrial Ethernet Switch with M12 PushPull
General
Switch: IEEE802.3 Store and Forward; non-blocking wire speed
Auto-negotiation, auto-MDI-X, auto-polarity: Yes
Frame size: 2.048 bytes
MAC table size: 2,000 addresses
Quality of Service: Yes - 4 priority queues
Energy Efficient Ethernet: No
Flow Control: No
PROFINET suitable: Yes
| Portnumber (M12) | 4 | 6 | 8 |
| MTBF (SN 29500, Mio. h) |
3.431 | 2.791 | 2.353 |
| Frame Forwarding (Art.-Nr.) | xxxxx0 | xxxxx1 |
| LLDP, PTCP Delay 01:80:C2:00:00:0E | Forwarding | Blocking |
| RSTP BPDU 01:80:C2:00:00:00 | Forwarding | Forwarding |
Power supply / electronics
Rated voltage: Vin 24 VAC / 24 VDC
Perm. voltage range: 8 to 28 VAC / 9 to 36 VDC
Connection type: Vin M12 A-cod. (+ -) | M4 threaded hole (FE)
Red. Power supply: Yes, two full bridge circuits
Supply circuit: SELV DIN 60950 (circuit breaker 10 A)
Inrush current limiting: Yes
Input fuse: Yes, switching capacity 50 A @ 125VAC / VDC
Reverse polarity protection: Yes
Bypass voltage failure: 10 ms DIN 50155
PCB Conformal Coating: Yes
Protection Class: III
Insulation: 2.25 kVDC; Vin ↔ Ethernet Ports | Vin ↔ Housing
| Portnumber (M12) | 4 | 6 | 8 |
| Power consumption(W) Idle | Full load |
0,4 | 0,82 | 0,4 | 1,0 | 0,4 | 1,2 |
| Input current (mA) Idle | Full load |
16 | 34 | 16 | 42 | 16 | 50 |
| Inrush current (A) | 8 | 8 | 8 |
Mechanical properties
Housing material: Anodised aluminium, stainless steel
Mounting type: M6 hole for wall mounting, round-head screw
Protection class (operation): IP65/67
| Portnumber (RJ45) | 4 | 6 | 8 |
| Wide (mm) | 55 | 55 | 55 |
| Height (mm) | 93 | 117 | 141 |
| Depth (mm) | 29,8 | 29,8 | 29,8 |
| Weight (g) | 200 | 250 | 295 |
Ethernet interfaces
IEEE standards: 802.3 10BaseT, 802.3u 100BaseT(X)
Isolation: 2.25 kVDC; Ethernet Port ↔ Housing | Port ↔ Port
Connection type: M12
Port count | Speed: 4,6,8 ports | 10/100 Mbit/s
Cable length: 100 m (twisted pair, 0.14 mm² - 0.22 mm², Cat 5)
EMC and environmental specification
Operating temperature: -40°C to 70°C
Storage temperature: -40°C to 85°C
Relative humidity (operating): 0%-95% (non-condensing)
Relative humidity (storage): 0%-95% (non-condensing)
Air pressure (operating): 2,000 m (795 hPa)
EMC immunity: DIN EN - 50121-3-2, 61000-6-2, 55024
EMC interference emission: DIN EN 50121-3-2, 61000-6-4, 55032
Mechanical stability: DIN EN 61373
Fire protection: DIN EN 45545
Declaration of conformity and certifications
CE, DIN EN 50155, DIN EN 60950-1, E-Mark - (E1/R10)
Status and diagnostic indicators
LED: Power | Link/Activity per port
Products
| Available models | ||
| Article | Art.-Nr. | Specification |
| NITE-XS4-1100 | 411300 | 4xM12, FE, 24 V |
| NITE-XS6-1100 | 411500 | 6xM12, FE, 24 V |
| NITE-XS8-1100 | 411600 | 8xM12, FE, 24 V |
| NITE-XS4-1101 | 411301 | 4xM12, FE, 24 V, LLDP Blocking |
| NITE-XS6-1101 | 411501 | 6xM12, FE, 24 V, LLDP Blocking |
| NITE-XS8-1101 | 411601 | 8xM12, FE, 24 V, LLDP Blocking |
NITE-XS Push Pull - Industrial Ethernet Switch with M12 PushPull
| Available models | ||
| Article | Art.-Nr. | Specification Speed: 10/100 IP class :IP65/67 |
| NITE-XS4-1110 | 411310 | 4x M12 D PushPull |
| NITE-XS6-1110 | 411510 | 6x M12 D PushPull |
| NITE-XS8-1110 | 411610 | 8x M12 D PushPull |
| NITE-XS4-1111 | 411311 | 4x M12 D PushPull |
| NITE-XS6-1111 | 411511 | 6x M12 D PushPull |
| NITE-XS8-1111 | 411611 | 8x M12 D PushPull |
