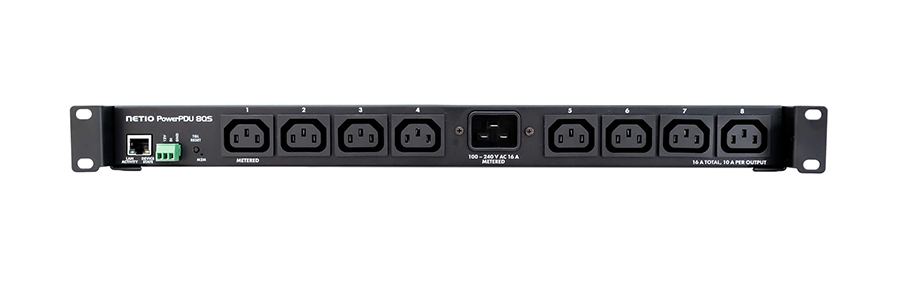

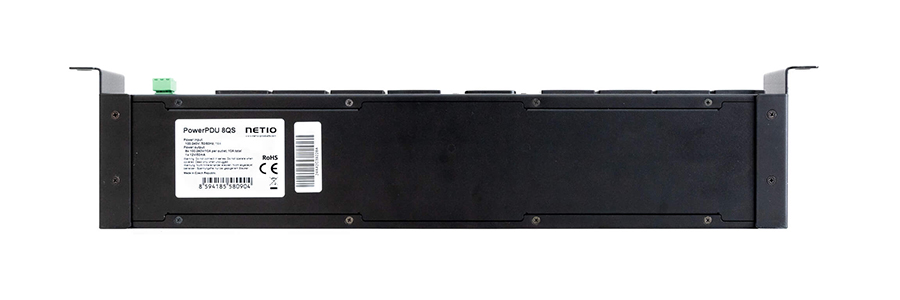

NETIO - PowerPDU 8QS
PDU (Power Distribution Unit) with eight power outputs (8x IEC-320 C13)
Listepris:
3.307,80 kr.*
Forhandlerpris - Login
7 stykker til rådighed, leveringstid: 2 - 3 arbejdsdage
Producentens varenummer:
PowerPDU 8QS
Vores artikelnummer:
900311
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "NETIO - PowerPDU 8QS"
NETIO PowerPDU 8QS is a PDU (Power Distribution Unit) with eight power outputs (8x IEC-320 C13) controlled and metered over a LAN. It fits into a 19” cabinet (1U). Each output can be switched on/off individually. PowerPDU 8QS supports two channels for electrical measurements: the PDU as a whole (all outputs combined), and the first output separately (All Outputs + 1). A digital input (DI) can be used to control the outputs or count S0 pulses (electricity meter output).
Features
NETIO PowerPDU 8QS can be configured with a web browser (allows output control, connection to NETIO Cloud, Open API communication settings, etc.).
Thanks to the Open API, integration with third-party systems using various protocols (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, ...) is easy. Ready-made AV drivers make it simple to connect the NETIO PDU to professional Audio/Video systems such as Neets, Crestron, Control4, RTI, Savant and more.
With the NETIO Cloud service, the outputs can be controlled from anywhere. The NETIO Cloud service, provided for a fee, uses SSL security and servers in Europe.
The NETIO Mobile2 app controls each output individually over LAN (local network).
To switch the outputs on in a sequence, a power-up delay can be configured for each output.
NETIO PowerPDU 8QS can be configured with a web browser (allows output control, connection to NETIO Cloud, Open API communication settings, etc.).
Thanks to the Open API, integration with third-party systems using various protocols (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, ...) is easy. Ready-made AV drivers make it simple to connect the NETIO PDU to professional Audio/Video systems such as Neets, Crestron, Control4, RTI, Savant and more.
With the NETIO Cloud service, the outputs can be controlled from anywhere. The NETIO Cloud service, provided for a fee, uses SSL security and servers in Europe.
The NETIO Mobile2 app controls each output individually over LAN (local network).
To switch the outputs on in a sequence, a power-up delay can be configured for each output.
Technical Details
LAN (RJ45): Yes
WiFi: No
Web: Built-in web server
Online demo: Yes
FW upgrade: Yes – via the device’s WEB interface
Downloads: FW archive
Mobile app: NETIO Mobile2 (Android & iOS)
Cloud connection needed for installation: No
Control button for each output: No
Cloud service: NETIO Cloud (for a fee, SSL security)
Open API (M2M protocols):
Scheduler function (weekly calendar): Yes
IP WatchDog function: Yes
Power WatchDog function: Yes
Sending e-mails: No
Power input: 1x IEC-320 C20, 110/230V (max. 16A)
Mechanical power switch: No
Power output: 8x IEC-320 C13 (max 10A / output)
Number of controlled outputs: 8
LED indication of output states: No
Electrical measurements: Yes
Number of channels for measurements: 2 (All Outputs + output 1)
Parameters measured for the whole device: Grid frequency [Hz], Voltage [V], Total current [A], Total power input [W], Overall TruePF [-]), Overall phase shift [°], Total energy [Wh], Total reverse energy [Wh]
Parameters measured for output 1: Current [A], Power [W], TruePF [-], Phase shift [°], Energy [Wh], Reverse energy [Wh]
Accuracy of electrical measurements: better than 1% (in the entire temperature range)
Internal consumption: 1-3 W
Digital inputs (DI): 1x input (contact) + S0 counter (4 bytes)
Power for DI: 12V power (max 50mA)
SPD – surge protection: Yes, type 3 (125J (8/20us))
Switching element: relay SPST-NO, ZVS
ZVS (Zero Voltage Switching): Yes
IOC (output state independent from FW updates): Yes
PowerUp state of outputs: On / Off / LAST state
Dimensions: 439 x 41 x 90 mm
Mechanical mounting: 19“ (1U) rack mount
Ingress protection: IP30
Sound output: No
Temperature range: -20°C to +50°C
LAN (RJ45): Yes
WiFi: No
Web: Built-in web server
Online demo: Yes
FW upgrade: Yes – via the device’s WEB interface
Downloads: FW archive
Mobile app: NETIO Mobile2 (Android & iOS)
Cloud connection needed for installation: No
Control button for each output: No
Cloud service: NETIO Cloud (for a fee, SSL security)
Open API (M2M protocols):
JSON over HTTP (default)
MQTT-flex (MQTT extension, supports SSL)
SNMP v1
SNMP v3
Modbus/TCP
XML over HTTP
URL API (http get) (control of outputs only)
Telnet (control of outputs only, backwards compatible with KSHELL)
HTTP(s) Push JSON
HTTP(s) Push XML
Lua support: NoMQTT-flex (MQTT extension, supports SSL)
SNMP v1
SNMP v3
Modbus/TCP
XML over HTTP
URL API (http get) (control of outputs only)
Telnet (control of outputs only, backwards compatible with KSHELL)
HTTP(s) Push JSON
HTTP(s) Push XML
Scheduler function (weekly calendar): Yes
IP WatchDog function: Yes
Power WatchDog function: Yes
Sending e-mails: No
Power input: 1x IEC-320 C20, 110/230V (max. 16A)
Mechanical power switch: No
Power output: 8x IEC-320 C13 (max 10A / output)
Number of controlled outputs: 8
LED indication of output states: No
Electrical measurements: Yes
Number of channels for measurements: 2 (All Outputs + output 1)
Parameters measured for the whole device: Grid frequency [Hz], Voltage [V], Total current [A], Total power input [W], Overall TruePF [-]), Overall phase shift [°], Total energy [Wh], Total reverse energy [Wh]
Parameters measured for output 1: Current [A], Power [W], TruePF [-], Phase shift [°], Energy [Wh], Reverse energy [Wh]
Accuracy of electrical measurements: better than 1% (in the entire temperature range)
Internal consumption: 1-3 W
Digital inputs (DI): 1x input (contact) + S0 counter (4 bytes)
Power for DI: 12V power (max 50mA)
SPD – surge protection: Yes, type 3 (125J (8/20us))
Switching element: relay SPST-NO, ZVS
ZVS (Zero Voltage Switching): Yes
IOC (output state independent from FW updates): Yes
PowerUp state of outputs: On / Off / LAST state
Dimensions: 439 x 41 x 90 mm
Mechanical mounting: 19“ (1U) rack mount
Ingress protection: IP30
Sound output: No
Temperature range: -20°C to +50°C
