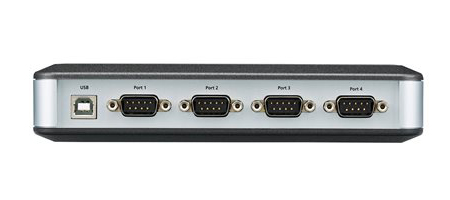

MOXA - UPort 2410
4-port RS-232 USB-to-serial converter
Producentens varenummer:
UPort 2410
Vores artikelnummer:
11032
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "MOXA - UPort 2410"
The UPort® 2210/2410 USB-to-serial converters allow you to connect two or four RS-232 devices to your laptop or workstation through the USB port. The UPort® 2210 and UPort® 2410 are cost-effective solutions for both new and legacy RS-232 devices, and they are perfect for mobile, instrumentation, and point-of-sale applications.
Scope of delivery: MOXA - UPort 2410
Scope of delivery: MOXA - UPort 2410
| Protocol: | RS 232 |
|---|---|
| Serial Ports: | 4 Ports |
| USB to x: | USB to RS 232 |
Features
- Hi-Speed USB 2.0 for up to 480 Mbps USB data transmission rates
- 921.6 kbps maximum baudrate for fast data transmission
- Drivers provided for Windows and Linux
- Driver support for MAC OS
- Supports fixed-base COM Utility for setting the initial extended COM port number
- LEDs for easy monitoring
Technical details
USB Interface
Speed: 12 Mbps, 480 Mbps
USB Connector: USB Type B
USB Standards: USB 1.1/2.0 compliant
Serial Interface
Serial Standards: RS-232
No. of Ports: 4
Connector: DB9 male
Baudrate: 50 bps to 921.6 kbps
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, RTS/CTS, XON/XOFF
Serial Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Power Parameters
Input Voltage: 5 VDC
Input Current: 240 mA @ 5 VDC
Physical Characteristics
Housing: Polycarbonate (PC)
Dimensions: 80 x 35 x 185 mm (3.15 x 1.38 x 7.28 in)
Weight: Packaged: 455 g (1 lb); Product only: 210 g (0.46 lb)
Environmental Limits
Operating Temperature: 0 to 55°C (32 to 131°F)
Storage Temperature (package included): -20 to 75°C (-4 to 167°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
USB Interface
Speed: 12 Mbps, 480 Mbps
USB Connector: USB Type B
USB Standards: USB 1.1/2.0 compliant
Serial Interface
Serial Standards: RS-232
No. of Ports: 4
Connector: DB9 male
Baudrate: 50 bps to 921.6 kbps
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, RTS/CTS, XON/XOFF
Serial Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Power Parameters
Input Voltage: 5 VDC
Input Current: 240 mA @ 5 VDC
Physical Characteristics
Housing: Polycarbonate (PC)
Dimensions: 80 x 35 x 185 mm (3.15 x 1.38 x 7.28 in)
Weight: Packaged: 455 g (1 lb); Product only: 210 g (0.46 lb)
Environmental Limits
Operating Temperature: 0 to 55°C (32 to 131°F)
Storage Temperature (package included): -20 to 75°C (-4 to 167°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
