MOXA - NPort 5610-8-DT
8-port RS-232 desktop device server with DB9 male connectors and 48 VDC power input
Producentens varenummer:
NPort 5610-8-DT
Vores artikelnummer:
13342
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "MOXA - NPort 5610-8-DT"
NPort 5600-8-DT device servers can conveniently and transparently connect 8 serial devices to an Ethernet network, allowing you to network your existing serial devices with only basic configuration. You can both centralize management of your serial devices and distribute management hosts over the network. Since the NPort 5600-8-DT device servers have a smaller form factor compared to our 19-inch models, they are a great choice for applications that need additional serial ports, but for which mounting rails are not available.
Scope of delivery: MOXA - NPort 5610-8-DT
Scope of delivery: MOXA - NPort 5610-8-DT
| Connection: | Fiber Optic |
|---|---|
| Power Supply: | Internal Single AC |
| Protocol: | RS 232 |
| Serial Ports: | 8 Ports |
Features
Convenient Design for RS-485 Applications
The NPort 5650-8-DT device servers support selectable 1 kilo-ohm and 150 kilo-ohms pull high/low resistors and a 120-ohm terminator. In some critical environments, termination resistors may be needed to prevent the reflection of serial signals. When using termination resistors, it is also important to set the pull high/low resistors correctly so that the electrical signal is not corrupted. Since no set of resistor values is universally compatible with all environments, NPort 5600-8-DT device servers use DIP switches to allow users to adjust termination and pull high/low resistor values manually for each serial port.
Convenient Power Inputs
The NPort 5650-8-DT device servers support both power terminal blocks and power jacks for ease of use and greater flexibility. Users can connect the terminal block directly to a DC power source, or use the power jack to connect to an AC circuit through an adapter.
LED Indicators to Ease Your Maintenance Tasks
The System LED, Serial Tx/Rx LEDs, and Ethernet LEDs (located on the RJ45 connector) provide a great tool for basic maintenance tasks and help engineers analyze problems in the field. The NPort 5600’s LEDs not only indicate current system and network status, but also help field engineers monitor the status of attached serial devices.
Two Ethernet Ports for Convenient Cascade Wiring
The NPort 5600-8-DT device servers come with two Ethernet ports that can be used as Ethernet switch ports. Connect one port to the network or server, and the other port to another Ethernet device. The dual Ethernet ports eliminate the need to connect each device to a separate Ethernet switch, reducing wiring costs.
Convenient Design for RS-485 Applications
The NPort 5650-8-DT device servers support selectable 1 kilo-ohm and 150 kilo-ohms pull high/low resistors and a 120-ohm terminator. In some critical environments, termination resistors may be needed to prevent the reflection of serial signals. When using termination resistors, it is also important to set the pull high/low resistors correctly so that the electrical signal is not corrupted. Since no set of resistor values is universally compatible with all environments, NPort 5600-8-DT device servers use DIP switches to allow users to adjust termination and pull high/low resistor values manually for each serial port.
Convenient Power Inputs
The NPort 5650-8-DT device servers support both power terminal blocks and power jacks for ease of use and greater flexibility. Users can connect the terminal block directly to a DC power source, or use the power jack to connect to an AC circuit through an adapter.
LED Indicators to Ease Your Maintenance Tasks
The System LED, Serial Tx/Rx LEDs, and Ethernet LEDs (located on the RJ45 connector) provide a great tool for basic maintenance tasks and help engineers analyze problems in the field. The NPort 5600’s LEDs not only indicate current system and network status, but also help field engineers monitor the status of attached serial devices.
Two Ethernet Ports for Convenient Cascade Wiring
The NPort 5600-8-DT device servers come with two Ethernet ports that can be used as Ethernet switch ports. Connect one port to the network or server, and the other port to another Ethernet device. The dual Ethernet ports eliminate the need to connect each device to a separate Ethernet switch, reducing wiring costs.
Technical details
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector): 2
Magnetic Isolation Protection: 1.5 kV (built-in)
Ethernet Software Features
Configuration Options: Serial Console, Telnet Console, Web Console (HTTP/HTTPS), Windows Utility
Management: ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, Rtelnet, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP
Filter: IGMP v1/v2
MIB: RFC1213, RFC1317
Time Management: SNTP
Linux Real TTY Drivers: Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY Drivers: SCO UNIX, SCO OpenServer, SCO UnixWare 7, Sun Solaris 10, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15
Android API: Android 3.1.x and later
Windows Real COM Drivers: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022, Windows Embedded CE 5.0/6.0, Windows XP Embedded
Security Functions
Authentication: Local database
Encryption: HTTPS, AES-128, RSA-1024, SHA-1, SHA-256
Security Protocols: HTTPS (TLS 1.2), SNMPv3
Serial Interface
Connector: DB9 male
No. of Ports: 8
Serial Standards: RS-232
Baudrate: Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, DTR/DSR, XON/XOFF
Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485: 120 ohms
RS-485 Data Direction Control: ADDC (automatic data direction control)
Isolation: -I models: 2 kV
Surge: 0.5 kV
Console Port: RS-232 (TxD, RxD, GND), 3-pin (19200, n, 8, 1)
Serial Signals RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
Power Parameters
Input Current: 611 mA @ 12 VDC
No. of Power Inputs: 2
Input Voltage: 12 to 48 VDC
Reverse Polarity Protection: Supported
Source of Input Power: TB, Power input jack
Reliability
Automatic Reboot Trigger: Built-in WDT
Alert Tools: Built-in buzzer and RTC (real-time clock)
Physical Characteristics
Housing: Metal

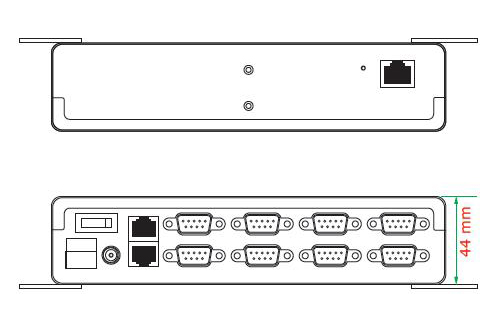

Dimensions (with ears): 229 x 46 x 125 mm (9.01 x 1.81 x 4.92 in)
Dimensions (without ears): 197 x 44 x 125 mm (7.76 x 1.73 x 4.92 in)
Dimensions (with DIN-rail kit on bottom panel): 197 x 53 x 125 mm (7.76 x 2.09 x 4.92 in)
Weight: 1,570 g (3.46 lb)
Installation: Desktop, DIN-rail mounting (with optional kit), Wall mounting (with optional kit)
Interactive Interface: LCD panel display, Push buttons for configuration
Environmental Limits
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature (package included): -40 to 75°C (-40 to 167°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector): 2
Magnetic Isolation Protection: 1.5 kV (built-in)
Ethernet Software Features
Configuration Options: Serial Console, Telnet Console, Web Console (HTTP/HTTPS), Windows Utility
Management: ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, Rtelnet, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP
Filter: IGMP v1/v2
MIB: RFC1213, RFC1317
Time Management: SNTP
Linux Real TTY Drivers: Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY Drivers: SCO UNIX, SCO OpenServer, SCO UnixWare 7, Sun Solaris 10, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15
Android API: Android 3.1.x and later
Windows Real COM Drivers: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022, Windows Embedded CE 5.0/6.0, Windows XP Embedded
Security Functions
Authentication: Local database
Encryption: HTTPS, AES-128, RSA-1024, SHA-1, SHA-256
Security Protocols: HTTPS (TLS 1.2), SNMPv3
Serial Interface
Connector: DB9 male
No. of Ports: 8
Serial Standards: RS-232
Baudrate: Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, DTR/DSR, XON/XOFF
Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485: 120 ohms
RS-485 Data Direction Control: ADDC (automatic data direction control)
Isolation: -I models: 2 kV
Surge: 0.5 kV
Console Port: RS-232 (TxD, RxD, GND), 3-pin (19200, n, 8, 1)
Serial Signals RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
Power Parameters
Input Current: 611 mA @ 12 VDC
No. of Power Inputs: 2
Input Voltage: 12 to 48 VDC
Reverse Polarity Protection: Supported
Source of Input Power: TB, Power input jack
Reliability
Automatic Reboot Trigger: Built-in WDT
Alert Tools: Built-in buzzer and RTC (real-time clock)
Physical Characteristics
Housing: Metal
Dimensions (with ears): 229 x 46 x 125 mm (9.01 x 1.81 x 4.92 in)
Dimensions (without ears): 197 x 44 x 125 mm (7.76 x 1.73 x 4.92 in)
Dimensions (with DIN-rail kit on bottom panel): 197 x 53 x 125 mm (7.76 x 2.09 x 4.92 in)
Weight: 1,570 g (3.46 lb)
Installation: Desktop, DIN-rail mounting (with optional kit), Wall mounting (with optional kit)
Interactive Interface: LCD panel display, Push buttons for configuration
Environmental Limits
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature (package included): -40 to 75°C (-40 to 167°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
