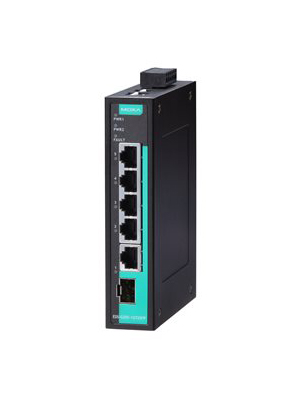

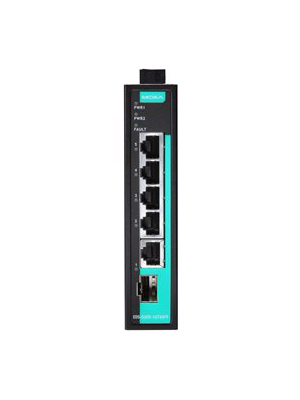

MOXA - EDS-G205-1GTXSFP
Unmanaged full Gigabit Ethernet switch with 4 10/100/1000BaseT(X) ports, 1 combo 10/100/1000BaseT(X) or 100/1000BaseSFP port, -10 to 60°C operating temperature
Listepris:
1.847,60 kr.*
Forhandlerpris - Login
Leveringstid: Varer er bestilt, vil være tilgængelige igen inden længe
Producentens varenummer:
EDS-G205-1GTXSFP
Vores artikelnummer:
12988
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "MOXA - EDS-G205-1GTXSFP"
The EDS-G205-1GTXSFP switches are equipped with 5 Gigabit Ethernet ports and 1 fiber-optic port, making them ideal for applications that require high bandwidth. The EDS-G205-1GTXSFP switches provide an economical solution for your industrial Gigabit Ethernet connections, and the built-in relay warning function alerts network managers when power failures or port breaks occur. The 4-pin DIP switches can be used for controlling broadcast protection, jumbo frames, and IEEE 802.3az energy saving. In addition, 100/1000 SFP speed switching is ideal for easy on-site configuration for any industrial automation application.
A standard-temperature model, which has an operating temperature range of -10 to 60°C, and a wide-temperature range model, which has an operating temperature range of -40 to 75°C, are available. Both models undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The switches can be installed easily on a DIN rail or in distribution boxes.
Scope of delivery: MOXA - EDS-G205-1GTXSFP
A standard-temperature model, which has an operating temperature range of -10 to 60°C, and a wide-temperature range model, which has an operating temperature range of -40 to 75°C, are available. Both models undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The switches can be installed easily on a DIN rail or in distribution boxes.
Scope of delivery: MOXA - EDS-G205-1GTXSFP
| Management: | Layer 2 unmanaged |
|---|
Features
- Fiber-optic options for extending distance and improving electrical noise immunity
- Redundant dual 12/24/48 VDC power inputs
- Supports 10 KB jumbo frames
- Relay output warning for power failure and port break alarm
- Broadcast storm protection
- -40 to 75°C operating temperature range (-T models)
Techncial details
Input/Output Interface
Alarm Contact Channels: 1 relay output with current carrying capacity of 1 A @ 24 VDC
Ethernet Interface
10/100/1000BaseT(X) Ports (RJ45 connector): 4, Auto negotiation speed, Full/Half duplex mode, Auto MDI/MDI-X connection
Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+): 1
Standards: IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for flow control, IEEE 802.3z for 1000BaseX, IEEE 802.3az for Energy-Efficient Ethernet
Switch Properties
MAC Table Size: 8 K
Packet Buffer Size: 1 Mbits
Jumbo Frame Size: 10 KB
Processing Type: Store and Forward
DIP Switch Configuration
Ethernet Interface: Broadcast storm protection, Jumbo Frame, IEEE 802.3az energy saving, 100/1000 SFP speed switching, Port break alarm
Power Parameters
Connection: 1 removable 6-contact terminal block(s)
Input Voltage: 12/24/48 VDC, Redundant dual inputs
Operating Voltage: 9.6 to 60 VDC
Reverse Polarity Protection: Supported
Input Current: 0.14 A @ 24 VDC
Physical Characteristics
Housing: Metal
IP Rating: IP30
Dimensions: 29 x 135 x 105 mm (1.14 x 5.31 x 4.13 in)
Weight: 290 g (0.64 lb)
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
Operating Temperature: -10 to 60°C (14 to 140°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Input/Output Interface
Alarm Contact Channels: 1 relay output with current carrying capacity of 1 A @ 24 VDC
Ethernet Interface
10/100/1000BaseT(X) Ports (RJ45 connector): 4, Auto negotiation speed, Full/Half duplex mode, Auto MDI/MDI-X connection
Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+): 1
Standards: IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for flow control, IEEE 802.3z for 1000BaseX, IEEE 802.3az for Energy-Efficient Ethernet
Switch Properties
MAC Table Size: 8 K
Packet Buffer Size: 1 Mbits
Jumbo Frame Size: 10 KB
Processing Type: Store and Forward
DIP Switch Configuration
Ethernet Interface: Broadcast storm protection, Jumbo Frame, IEEE 802.3az energy saving, 100/1000 SFP speed switching, Port break alarm
Power Parameters
Connection: 1 removable 6-contact terminal block(s)
Input Voltage: 12/24/48 VDC, Redundant dual inputs
Operating Voltage: 9.6 to 60 VDC
Reverse Polarity Protection: Supported
Input Current: 0.14 A @ 24 VDC
Physical Characteristics
Housing: Metal
IP Rating: IP30
Dimensions: 29 x 135 x 105 mm (1.14 x 5.31 x 4.13 in)
Weight: 290 g (0.64 lb)
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
Operating Temperature: -10 to 60°C (14 to 140°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
