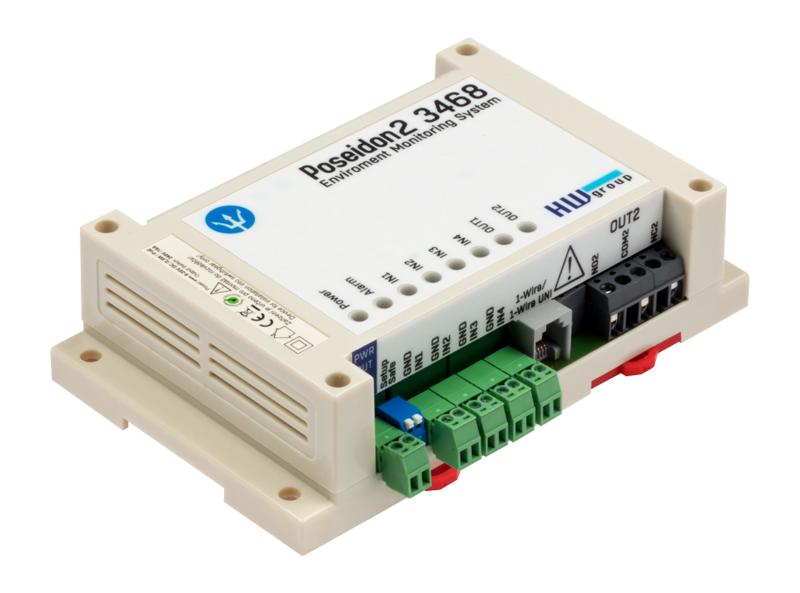

HW Group - Poseidon2 3468 - 600570
Sensor remote monitoring DIN rail, 48V DC, 4x DI, 2x DO 230R/16A, 2x RJ11 - max. 8 sensors, WEB, XML, SNMP, Modbus/TCP
Producentens varenummer:
600570
Vores artikelnummer:
930022
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "HW Group - Poseidon2 3468 - 600570"
Poseidon2 3468 supports up to 8 sensors connected via 1-Wire UNI / 1-Wire and up to 4 detectors connected to digital inputs. Poseidon2 3468 can control 2 230 V / 10 A digital relay outputs and up to 8 virtual digital outputs (VDO) on remote Poseidon2 or Damocles2 units (M2M).
In addition to the standard 9-30 V power input, Poseidon2 3468 can operate at -48 V for easy use in telecom solutions.
An integrated web server is used for configuration. The unit can be monitored remotely via the internet using the free SensDesk portal in combination with the SensDesk mobile app for iOS and Android. It works with HWg-PDMS and HWg-Trigger.
Poseidon2 devices are used to monitor and control sensors and digital I/O over the network using secure M2M protocols (HTTPs, IPv6, SNMPv3). With support for over 50 SNMP and SCADA applications, Poseidon2 devices can be integrated into a wide range of monitoring and control systems. The MQTT protocol enables integration into IoT solutions.
Scope of delivery: HW Group Poseidon2 3468 - 600570
In addition to the standard 9-30 V power input, Poseidon2 3468 can operate at -48 V for easy use in telecom solutions.
An integrated web server is used for configuration. The unit can be monitored remotely via the internet using the free SensDesk portal in combination with the SensDesk mobile app for iOS and Android. It works with HWg-PDMS and HWg-Trigger.
Poseidon2 devices are used to monitor and control sensors and digital I/O over the network using secure M2M protocols (HTTPs, IPv6, SNMPv3). With support for over 50 SNMP and SCADA applications, Poseidon2 devices can be integrated into a wide range of monitoring and control systems. The MQTT protocol enables integration into IoT solutions.
Scope of delivery: HW Group Poseidon2 3468 - 600570
| Alerts: | E-Mail with Transport Encryption, SMTP Get |
|---|---|
| Classification: | Big Server Rooms and Datacenter |
| Device: | Monitoring Device |
| Device Classes: | 8 Sensors, Expandable with DI/DO |
Features
- 8x 1-wire UNI / 1-wire input; 4x digital input; data logger for more than 250,000 data records; digital inputs have 32-bit S0 pulse counters that retain their value even in the event of a power failure.
- 2x relay output 230V / 10A; 8x virtual digital output
- 5x SNMP trap; 5x e-mail; 5x "SMS + Ring" (via external GSM gateway or modem)
- MQTT compatibility enables connection to IoT Hub, MS Azure, Bluemix Internet of Things and other cloud services.
- Connected via LAN. Configuration via built-in web server.
- A sensor reading outside a specified safety range and a change in DI status send an alert via email, SMS, SNMP trap or activate a remote relay at another Poseidon2 of the Damocles2 unit.
- For ring or SMS alarms, use the HWg Trigger software (external GSM modem required) or a HWg SMS GW3 gateway on the same LAN.
- Virtual Digital Outputs (VDO) can be assigned to physical digital outputs (relays) of other Poseidon2 or Damocles2 units on the same LAN.
- With the HWg PDMS software, S0 pulses can be converted to cost per period and exported to MS Excel.
- Compatible with a range of third party SWs (SCADA etc.). Examples for programmers to use the product can be found in the HWg SDK (Borland C ++, MS Visual, VB, C #, PHP, JAVA and more).
Technical details
Applications and use
- Digital inputs: 4
- Outputs relay 230V/16A: 2
- Sensors (external): 1-Wire / 1-Wire UNI (2x 60m): 8
- SMS-GW client: Yes
- Modbus/TCP: Yes
- Logger: 250,000 data records
- SNMP: Yes
- E-mail alarms (periodic): Yes
- Power supply: 9-30 V/48 V
- Switchable relay: 110/230V 16A
- PoE / 48V: Yes
- Operating environment: -30 ° C to 75 ° C / 20% rH - 80% rH
- Storage environment: -30 ° C to 60 ° C / 5% rH - 95% rH
- Dimensions: 141 x 90 x 40 (WxHxD) / 257 g
Applications and use
- Remote thermostat / cabinet monitoring
- Monitor doors, power status, temperature / humidity, dry contacts.
- Industrial applications
- Remote monitoring of dry contacts, 4-20 mA probes or Pt100 / Pt1000 temperature probes. The values are logged in the internal memory.
- Monitoring at -48V telecommunication nodes
- Monitoring of power supply, emergency generator or UPS fuel level, diesel generator status, remote start via IP, monitoring of temperature and service interface (dry contacts).
- Pharmaceutical and food storage - temperature detection
- Monitoring of storage conditions - warehouses, refrigerators, freezers, refrigerators. Application software can generate HACCP reports.
- Smart buildings
