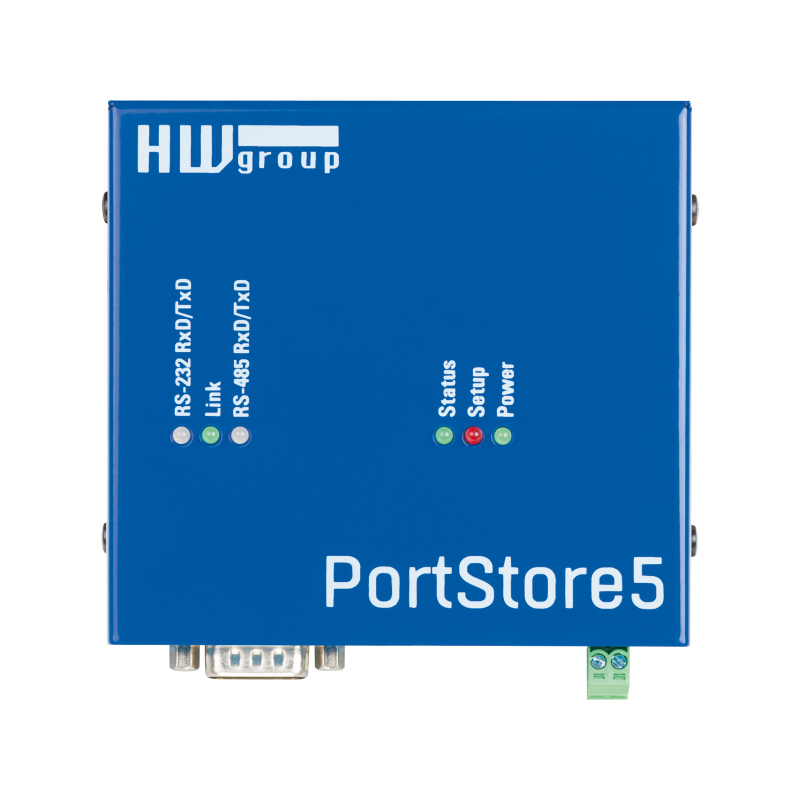

HW Group - PortStore5 Set - 600613
Serial interface buffer to Ethernet. Full serial interface RS-232, RS-485, logger, web interface, Windows Virtual Serial Port free of charge.
Producentens varenummer:
600613
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktets levetid er udløbet!
Opfølgende produkt:
We will find a suitable replacement product for your requirements - please contact our sales department.
Produktinformation "HW Group - PortStore5 Set - 600613"

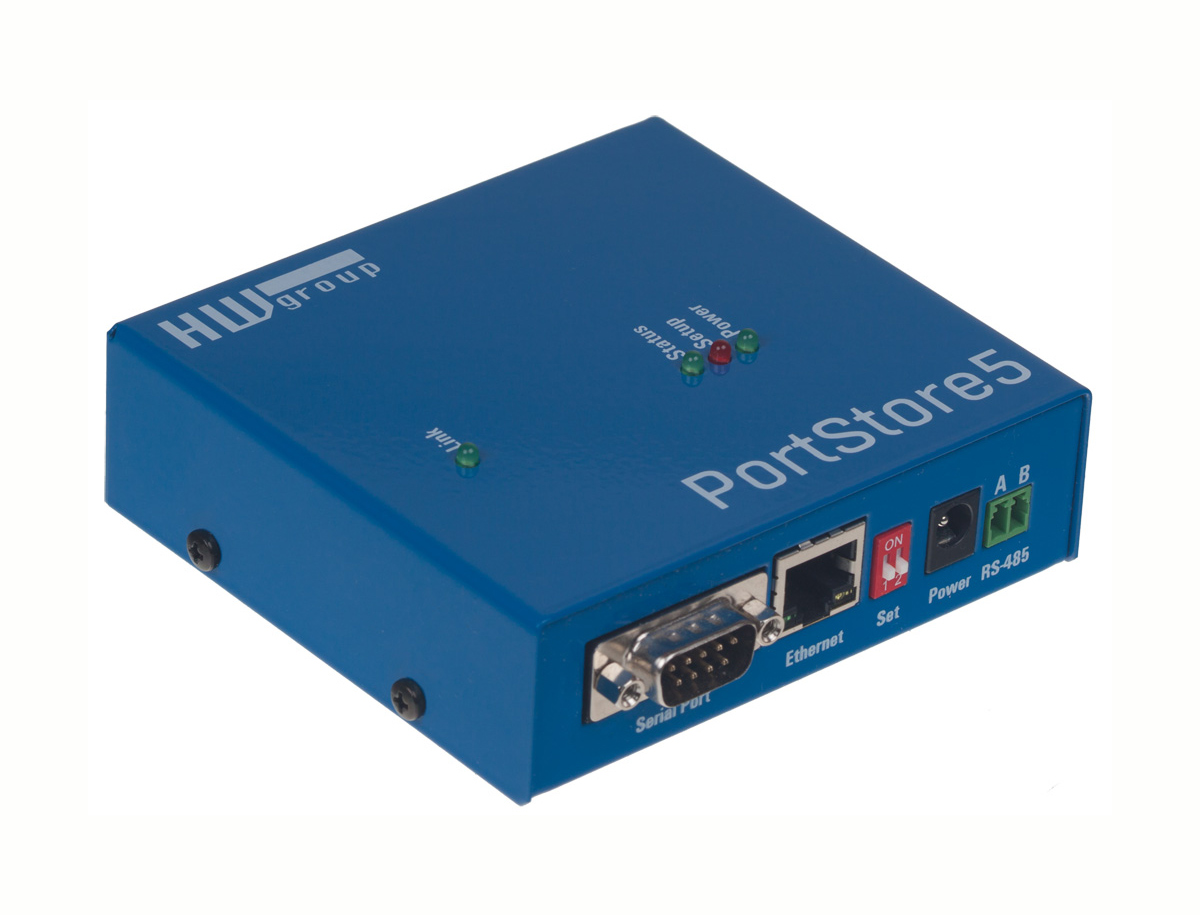

PortStore5 is an RS-232 and RS-485 serial to Ethernet converter with internal data logger. PortStore5 has a truly complete RS-232 serial interface (9-pin). The serial port converter can be connected to a PC via the LAN, with the serial port accessible in Windows as a Virtual Serial Port (VSP).
A built-in web server is used for configuration. The free application HW VSP3 allows up to 100 remote serial ports to be connected to a PC. The free application PS Eye allows exporting data from PortStore5 to txt files for further processing.
The RS-232 port of PortStore5 can be used simultaneously for data collection (CDR/SMDR, PBX Call Accounting) and for remote access as a Virtual Serial Port. Two devices can be connected in Box-2-Box mode. In this mode, the RS232/485 serial line is extended (tunneled) over the LAN.
Scope of delivery: HW Group PortStore5 - 600613
A built-in web server is used for configuration. The free application HW VSP3 allows up to 100 remote serial ports to be connected to a PC. The free application PS Eye allows exporting data from PortStore5 to txt files for further processing.
The RS-232 port of PortStore5 can be used simultaneously for data collection (CDR/SMDR, PBX Call Accounting) and for remote access as a Virtual Serial Port. Two devices can be connected in Box-2-Box mode. In this mode, the RS232/485 serial line is extended (tunneled) over the LAN.
Scope of delivery: HW Group PortStore5 - 600613
| Protocol: | RS 232 |
|---|
Features
- 1x full serial interface RS-232/485 with 9-bit communication support.
- M2M communication protocols: http, Telnet, TCP Server, TCP Client/Server.
- Connected via LAN. Configuration via built-in web server, Telnet.
- Internal data logger retains data even in case of power failure or loss of LAN connection.

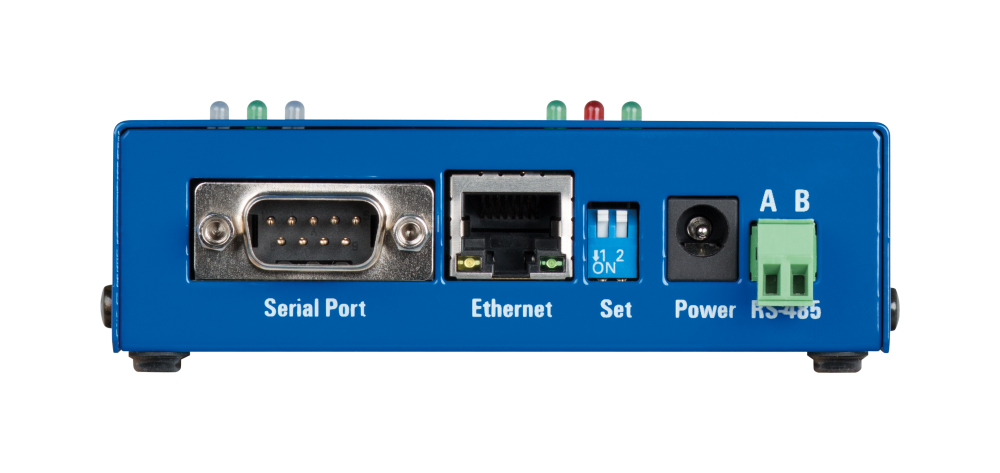

- Full RS-232 serial interface (9 pins: RxD, TxD, GND, CTS, RTS, DSR, DTR, RI, CD).
- RS-485 serial interface: up to 115,200 bd.
- Free SW HW VSP3: Virtual serial port for Windows (NT service, x64 systems). Supports up to 100 remote serial ports.
- Compatible with a range of third party SW. Examples for programmers to use the product are available in the HWg SDK (Borland C++, MS Visual, VB, C#, PHP, JAVA and more).
Technical details
Applications and use:
- Ethernet: 100 Mbit/s
- IP protocols: ARP, UDP/IP, TCP/IP (HTTP, Telnet + RFC2217, RepBuf)
- RS-232 : Cannon DB9M (RxD, TxD, CTS, RTS, DSR, DTR, RI, CD,GND)
- RS-485 : Terminals
- Serial interface Logger memory: 4MB
- Power supply: 8-30V / 0,25 A
- Dimensions: 105 x 105 x 25 [mm]
- Operating conditions: 10°C to +75°C (+14°F to +167°F)
Applications and use:
- Remote control of power and other technology via RS-232 and RS-485
- Remote control of displays and signal lights
- RFID card readers, online access control systems
- Vending machines
- Security alarms
- Access control systems
- Barcode scanners
