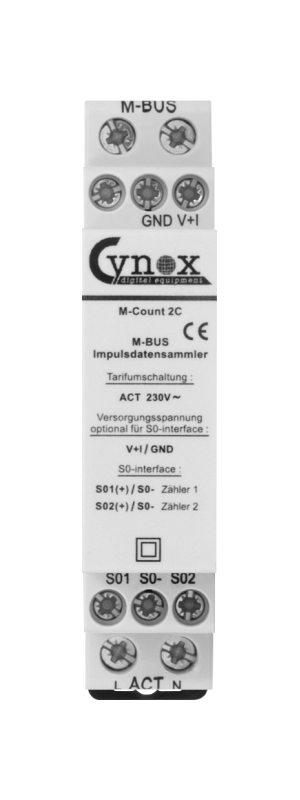

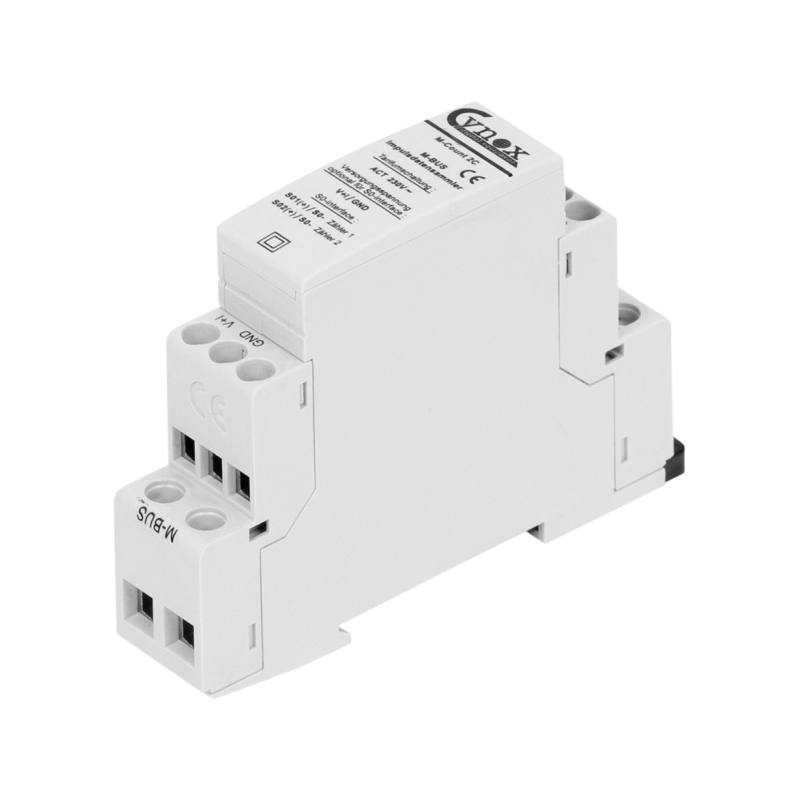

HW Group - M-Count 2C - 600481
Two S0 inputs to the M-Bus transmitter & data logger
Producentens varenummer:
600481
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "HW Group - M-Count 2C - 600481"
All in one!
Flexible use
M-Bus compliant with EN 1434-3 standard
- Data logger for recording and transmitting energy and water consumption data and type S0 output pulses.
- Includes functions for date and tariff switching.
Flexible use
- Mounting on standard DIN rail according to EN 50022, width only 1 module (1-TE = 18 mm).
- Two completely separate pulse input channels.
- Eight memory registers for current values (high tariff HT / low tariff NT), and historical values (data).
- Tariff shifting also possible via 230 VAC via ACTS input channel.
- Freely programmable time clock.
- Complete programming via PC.
M-Bus compliant with EN 1434-3 standard
- Both pulse inputs are freely programmable and thus adaptable to different applications with internal real-time clock.
- Built-in lithium battery backup to ensure full functionality of the M-Bus in case of power failure.
- Optional - complete remote meter reading with billing module.
- Easy-to-use configuration software for the PC is included.
| Device: | Accessories |
|---|
Features
- Power supply: M-Bus, in case of M-Bus failure from the internal lithium battery.
- Current consumption: approx. 50μA with battery operation, 1.5mA from M-Bus network
- Battery life: 0.23mAh from battery in case of consumption, approx. 200 days in case of M-Bus failure
- Digital inputs: double signal inputs (S0 optional), 50Hz sampling cycle (˂30 ms for S0)
- Tariff signal: via changeover contact to TS channel or 250 VAC via ACT input
- Interface: M-Bus according to EN1434-3 standard, 2400 baud
- Temperature range: -20° to +65°C
- Mounting: Industrial DIN rail 35mm - according to EN 50022 standard
- Dimensions: 1 module size (1 - TE = 18 mm), 82x63x17.5 mm
- Two completely separate pulse input channels.
- Eight memory registers for current values (high tariff HT / low tariff NT), and historical values (data).
- Mounting on industrial DIN rail 35mm - according to EN 50022 standard.
Technical details
Applications and use:
- Power supply: from the M-Bus or, in the event of M-Bus failure, from the internal lithium battery
- Current consumption: approx. 50μA with battery operation, 1.5mA from the M-Bus network
- Battery life: 0.23 mAh from battery in case of consumption, approx. 200 days in case of M-Bus failure
- Digital inputs: dual signal inputs (reed contact) (S0 optional) 50Hz sampling cycle (<30 ms for S0)
- Tariff signal: through change-over contact on TS channel or 250VAC through ACT input
- Interfaces: M-Bus according to EN1434-3 standard, 2400 baud
- Temperature range: -20° to +65°C
- Mounting: industrial DIN rail 35 mm - according to EN 50022 standard
- Dimensions: 1-module size (1-TE = 18 mm), 82x63x17.5 mm
Applications and use:
- Acquisition of pulses from gas, water, electricity or other meters and field devices with pulse output or electrical outputs of type S0.
- S0 pulse meter with SNMP and Modbus/TCP
- Energy consumption in residential buildings
