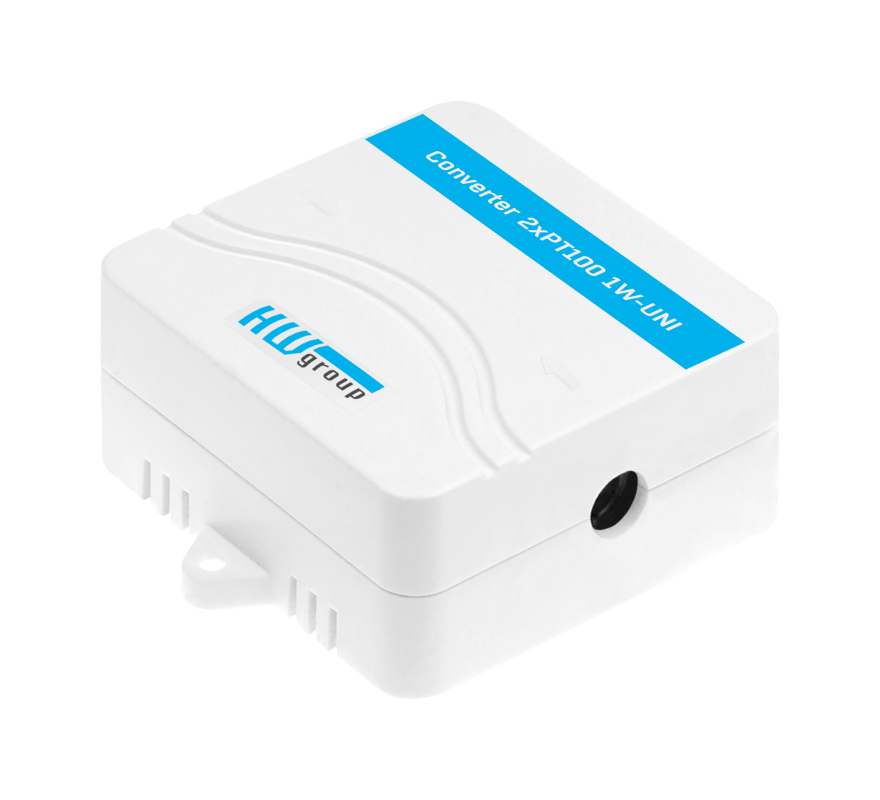

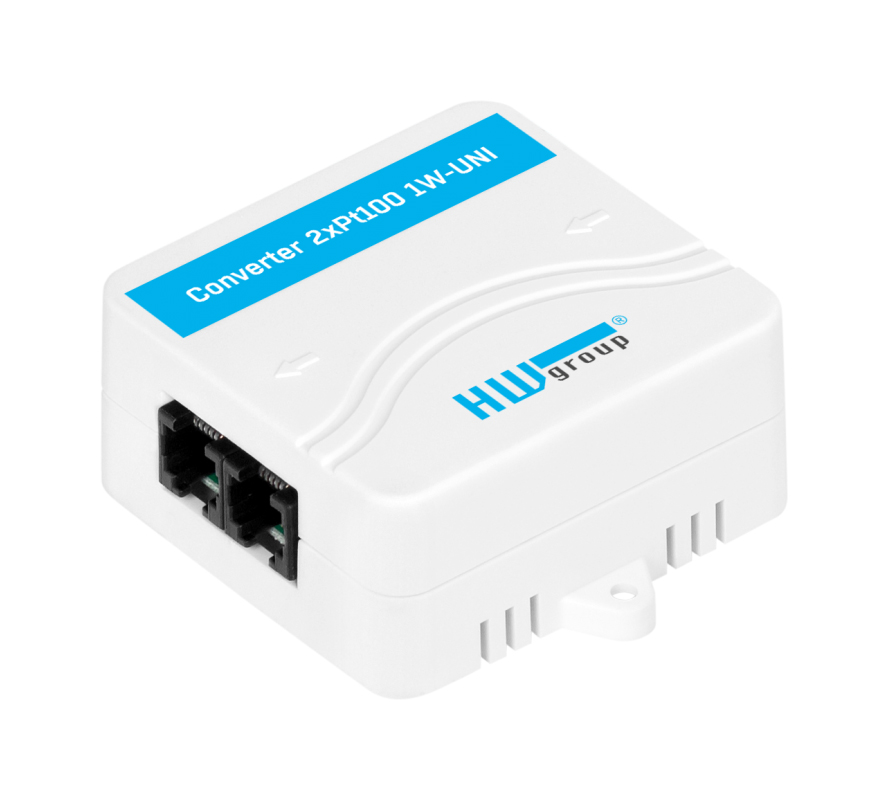

HW Group - Converter 2xPt100 1W-UNI - 600567
Converter for Pt temperature sensors Connection for 2x Pt100 or Pt1000 temperature sensors
Producentens varenummer:
600567
Vores artikelnummer:
930102
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "HW Group - Converter 2xPt100 1W-UNI - 600567"
Double converter for connecting two Pt-100 and Pt-1000 sensors to 1-Wire UNI (RJ11). One or two external temperature sensors can be monitored via LAN Poseidon2) and GSM (Ares).
Typical applications are the measurement of extreme temperatures in ovens, coolers, motors, etc.
The converter connects one or two Pt100 or Pt1000 platinum temperature sensors to the 1-wire UNI bus. Pt100 sensors come in numerous form factors designed for different applications.
The "Converter 2xPt100 1W-UNI" can be connected to Poseidon2 or Ares devices. The values can be exchanged via LAN or GSM.
Scope of delivery:HW Group Converter 2xPt100 1W-UNI - 600567
Typical applications are the measurement of extreme temperatures in ovens, coolers, motors, etc.
The converter connects one or two Pt100 or Pt1000 platinum temperature sensors to the 1-wire UNI bus. Pt100 sensors come in numerous form factors designed for different applications.
The "Converter 2xPt100 1W-UNI" can be connected to Poseidon2 or Ares devices. The values can be exchanged via LAN or GSM.
- The converter automatically recognises Pt100 and Pt1000 sensors.
- The measured temperature range is -200 to +850 °C (-328 to 1560 °F)
- The external probes can be connected via 2, 3 or 4 wires
- The transmitter is powered via the 1-wire Uni-Bus (RJ11)
- High temperature measuring accuracy, auto-range
- Sensors can be connected in series (two RJ11 connections)
- The converter can be calibrated at 8 points
Scope of delivery:HW Group Converter 2xPt100 1W-UNI - 600567
| Device: | Accessories |
|---|
Features
- Input: 2x Pt-100 or Pt-1000
- Sensor connection: 2 or 3 or 4 wires
- Electrical insulation: No
- Options: Unit conversion, calibration
- Interface: 1-wire UNI (2x RJ11 for daisy-chaining)
- Connects to: Poseidon 2250, 4002, Ares 12/14, Poseidon2
- Environment: converter for indoor installation
- Power supply: Bus-powered (1-Wire UNI) - max. 2 sensors per active connection.
- Sensor limitations: High current consumption, max. 2 sensors per active RJ11 port. We recommend the use of 1-Wire hub Power
Technical details
Bus
Power
Converter input
Sensor output
Other
Applications and use
Bus
- Type: 1Wire-UNI (RJ11)
- Connects to: Poseidon2 xxxx, Ares xx, Poseidon 2250, Poseidon 4002, SiteMon5
- Connection: 2x RJ11 (sensors can be connected in series)
- Maximum distance: 60m (total cable length from active port)
- Electrical isolation: 1Wire-UNI bus is NOT galvanically isolated from the temperature sensors
Power
- Power supply: 1Wire-UNI bus
- Power limits: One active RJ11 port can power a maximum of two converters.
- To increase the power, use our "1-Wire Hub Power".
Converter input
- Connection: 2x 4-pole terminals (1,2,3,4 + 5,6,7,8)
- Supported sensors: 2x Pt100 or Pt1000 temperature probes (automatic detection)
- Probe connection: 2-wire, 3-wire or 4-wire connection
- Input range / accuracy
- Pt-100:-200°C to +650°C (± 0.3°C at +25°C converter temperature)
- Pt-100:-200°C to +850°C (± 0.6°C at +25°C converter temperature)
- Pt-1000: -120°C to +650°C (± 0.3°C at +25°C converter temperature)
- Pt-1000: -120°C to +850°C (± 0.6°C at +25°C converter temperature)
- Accuracy of the measuring system
- The total accuracy is the converter accuracy + Pt-100 sensor accuracy.
- For example, for Pt100/A: Δt = ±(0.15 + 0.002 x |t|) [°C].
- Total accuracy = ±(0.3 + 0.1 + 0.15 + 0.002 x |t|) [°C] (at +25°C transducer temperature)
- Total accuracy = ±0.55 °C when measured at 0 °C (transducer +25°C)
- Total accuracy = ±0.75 °C when measuring 100 °C (converter +25°C)
- Total accuracy = ±2.25 °C when measuring 700 °C (converter +25°C)
Sensor output
- Resolution; 1 decimal place
- Displayed units: Standard [°C]
- For conversion / recalculation to other units, please contact your dealer.
- Measuring period: Once per second
Other
- Operating conditions: -40 to +85 °C (-40 to +185 °F) / 5 to 70 % RH
- Dimensions / Mass: 65 x 80 x 30 [mm] / 200 g
Applications and use
- Accurate measurement of temperature over a wide range
- Cooling systems with built-in temperature sensors at fixed locations
- Large-scale measurement systems with many measurement points
- Measurement of HVAC and ambient conditions in smart buildings
- Measurement of temperature in food and grain storage facilities
- Industrial systems with accurate temperature measurement
- Temperature monitoring in pharmaceutical warehouses
