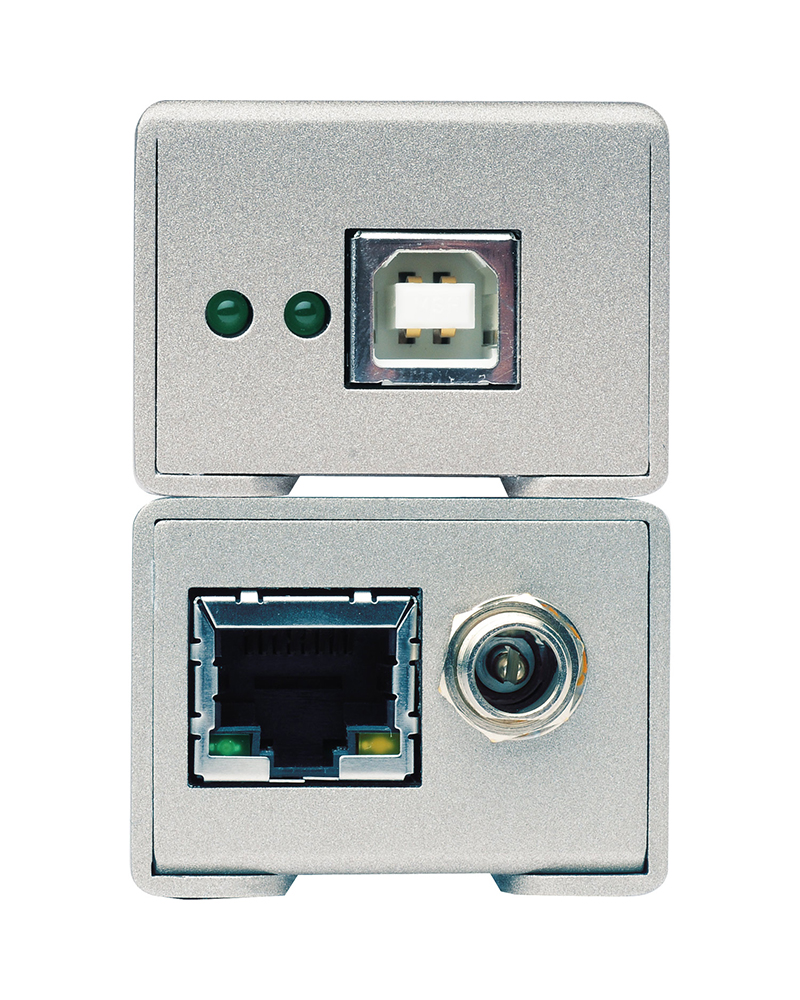

Gefen - USB 2.0 Extender
Extend USB 2.0 over CAT5 up to 330 feet (100m)
Producentens varenummer:
EXT-USB2.0-LR
Vores artikelnummer:
910016
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "Gefen - USB 2.0 Extender"
Gefen’s USB 2.0 LR extends high-speed USB devices over a single CAT-5e cable, up to 330 feet/100 meters.
The compact USB 2.0 LR Sender/Receiver units install in minutes and support USB versions 1.1 and 2.0 – essential for high-performance applications such as digital imaging and interactive gaming.
The two-port USB 2.0 hub that is built into the Receiver unit is ideal for remotely accessing laser printers, scanners, external hard drives, CD/DVD burners, flash drives, and standard resolution web cams.
Applications such as Remote Desktop (keyboard/mouse) extension, security, industrial control, digital signage control, and scientific data acquisition are all made possible thanks to EXT-USB2.0-LR’s universal implementation of USB standards.
The compact USB 2.0 LR Sender/Receiver units install in minutes and support USB versions 1.1 and 2.0 – essential for high-performance applications such as digital imaging and interactive gaming.
The two-port USB 2.0 hub that is built into the Receiver unit is ideal for remotely accessing laser printers, scanners, external hard drives, CD/DVD burners, flash drives, and standard resolution web cams.
Applications such as Remote Desktop (keyboard/mouse) extension, security, industrial control, digital signage control, and scientific data acquisition are all made possible thanks to EXT-USB2.0-LR’s universal implementation of USB standards.
| Connection: | 10 / 100 / 1000-TX (RJ45), USB Port |
|---|
Features
- Operate USB 2.0 peripherals up to 330ft (100m) from a computer
- Supports low and high-speed USB
- Uses industry-standard CAT5, CAT5e, or CAT6 cable
- Supports all major operating systems — Windows, MacOS and Linux.
- True plug-and-play, 100% hardware solution with no drivers required
- Operates at full 480 Mbps speed when running in USB 2.0 mode
- Receiver supports up to 2 USB powered connections at 500 mA each
Technical Details
USB 2.0 Speed: 480 Mbps
Link Connector (Sender/Receiver): RJ-45 Shielded
USB Connector (Sender): (1) USB type B
USB Connectors (Receiver): (2) USB type A
Power Supply (Sender/Receiver): 5V DC, locking
Power Consumption (Sender/Receiver): 2.5W/10W (maximum)
Operating Temperature: +32°F to +122°F (0°C to +50°C)
Storage Temperature: -4°F to 158°F (-20°C to 70°C)
Operating Humidity: 20% to 80% relative humidity, non-condensing
Storage Humidity: 10% to 90% relative humidity, non-condensing
Dimensions (W x H x D) (Sender/Receiver): 3.7” x 1.4” x 1.8” (94mm x 36mm x 46mm)
Shipping Weight: 2 lbs (0.9 kg)
USB 2.0 Speed: 480 Mbps
Link Connector (Sender/Receiver): RJ-45 Shielded
USB Connector (Sender): (1) USB type B
USB Connectors (Receiver): (2) USB type A
Power Supply (Sender/Receiver): 5V DC, locking
Power Consumption (Sender/Receiver): 2.5W/10W (maximum)
Operating Temperature: +32°F to +122°F (0°C to +50°C)
Storage Temperature: -4°F to 158°F (-20°C to 70°C)
Operating Humidity: 20% to 80% relative humidity, non-condensing
Storage Humidity: 10% to 90% relative humidity, non-condensing
Dimensions (W x H x D) (Sender/Receiver): 3.7” x 1.4” x 1.8” (94mm x 36mm x 46mm)
Shipping Weight: 2 lbs (0.9 kg)
