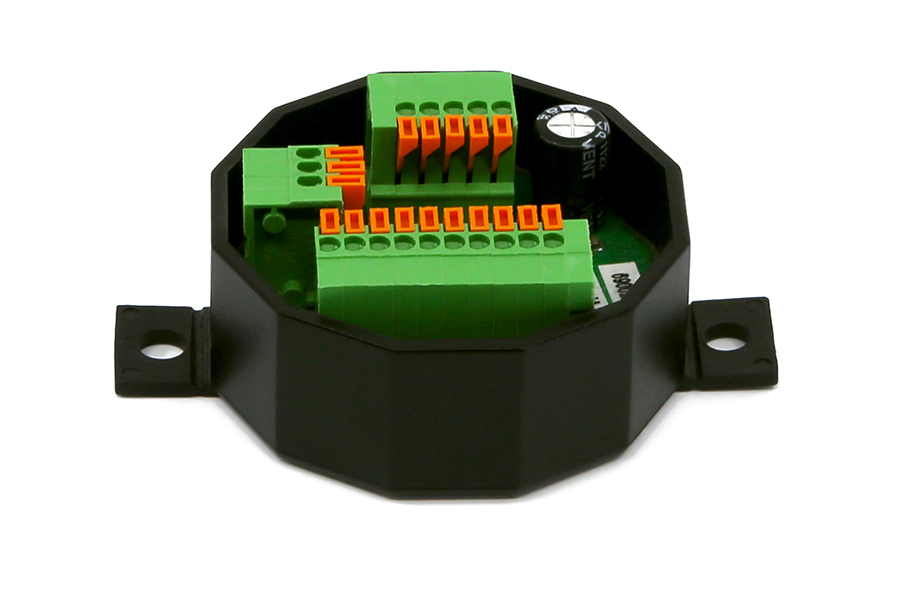

Barix - X8
I/O to RS-485 Modbus converter for commercial interfacing, control and home automation applications
Producentens varenummer:
2004.9044
Vores artikelnummer:
180032
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "Barix - X8"
Barix X8 is an I/O-to-RS-485 Modbus converter for commercial interface, control and home automation applications. Using the industry standard Modbus protocol over 2-wire RS-485, the unit can be controlled by any Modbus-enabled master.
The eight I/O ports support TTL levels (5 VDC) with limited current range for the outputs (depending on the supply voltage ding, 24 to 85 mA total). For applications with industrial voltage levels (10 to 30 VDC) and higher currents (max. 6 A total), choose the Barix Barionet IO12 instead.
Scope of delivery: BARIX - X8
The eight I/O ports support TTL levels (5 VDC) with limited current range for the outputs (depending on the supply voltage ding, 24 to 85 mA total). For applications with industrial voltage levels (10 to 30 VDC) and higher currents (max. 6 A total), choose the Barix Barionet IO12 instead.
Scope of delivery: BARIX - X8
| Connection: | Serial Ports RS232, RS422/485 |
|---|---|
| Fieldbus options: | ModBus |
| Option: | Programmable |
| Power Supply: | External |
| Protocol: | ModBus, RS 422 / 485 |
| Serial Ports: | 1 Port |
| Temperature Range: | Standard Temperature Range |
Features
- General I/O to RS-485 converter (inputs and outputs)
- WIEGAND reader to RS-485 converter (inputs and outputs)
- Up to eight push-buttons (inputs) or LEDs for status indication
- Local temperature and humidity measurement (inputs)
Technical details
Connecters
Connecters
- Power/RS-485, I/O (I/O, 5Vout,GND) and service
- interface on spring contact connector blocks for
- wires AWG 28 – AWG 16 / 0.08 – 1.3 mm2
- 8 I/O‘s (usage and power-on preset confi gurable
- over RS-485) on spring contact connector block
- for wires AWG 28 – AWG 16 / 0.08 – 1.3 mm2
- Inputs with internal 10 kOhm pull-up
- Max total 5 Vout & outputs current @ (V supply): - 24 mA (30 VDC), 32 mA (24 VDC), 85 mA (12 VDC)
- RS-485 (2-wire), 9’600/19’200 Baud , 8 bit, Even/No
- parity software confi gurable, Modbus/RTU protocol
- 1 LED for power indication
- 1 LED for RS-485 active send indication
- 2 LED for internal status indication
- External connector for default settings jumper
- 12 to 24 VAC / 9 to 30 VDC, 1 Watt max.
- high quality plastic, 33 g, Ø 2“ (2.75” mounting)
- h 0.9”/ Ø 51 mm (70 mm mounting) h 23 mm
- Min. 59’000h acc. to MIL217F at 24 VDC supply and 40°C ambient temperature
