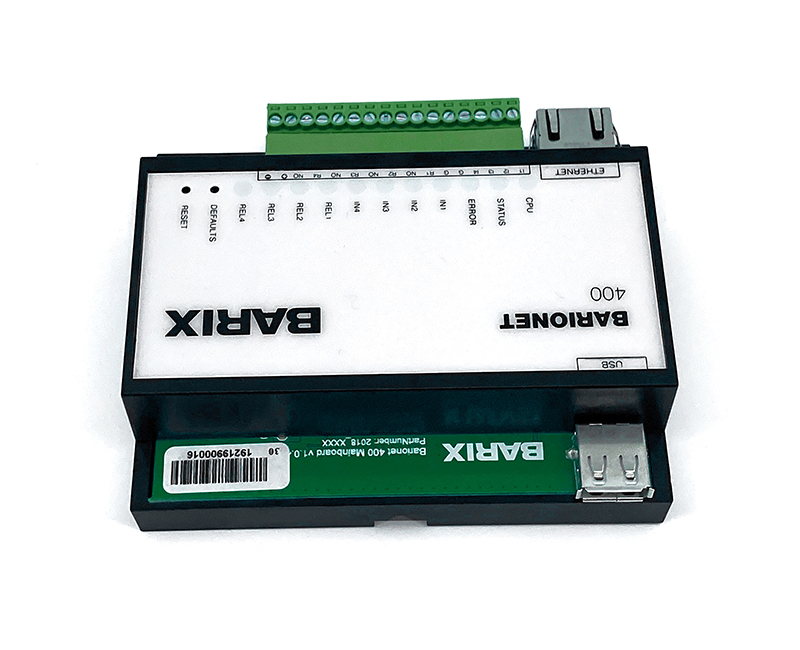

Barix - Barionet 400
Universal, programmable I/O Device Server
Producentens varenummer:
2018.9257P
Vores artikelnummer:
180170
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "Barix - Barionet 400"
Barionet 400 is a fully programmable I/O device server of Barix, based on Linux/Lede/OpenWRT. The device features most common IO interfaces such as USB, digital Inputs and Relays. It is IPv4 or IPv6 capable. Supporting multiple communication protocols, the Barionet device can be used in different applications such as automation, building control, public transport and many more. Barix Products are developed in Switzerland and manufactured to the highest standards.
Scope of delivery: BARIX - Barionet 400
Scope of delivery: BARIX - Barionet 400
Connection: | 10 / 100-TX (RL45) |
---|---|
I/O Interfaces: | Digital Input, Digital Output |
Interface: | Ethernet, USB |
Programmable: | Yes |
Protocol: | SNMP, TCP, UDP |
Temperature Range: | Standard Temperature Range |
Features
- Embedded Linux / OpenWRT
- Programmable in C++, Lua or Python
- IPv4 / IPv6 stack
- One 10/100 Ethernet port
- 4 Relay Outputs
- 4 Digital Inputs
- USB Host Interface
- Barionet DIN-Rail Case
- Supply Voltage 9-30 VDC
- IEEE 802.3af PoE
- Optional Real Time Clock
Technical details
Operation System
Operation System
- Linux / OpenWRT
- 1 x Ethernet (RJ45) Interface
- IPv4, IPv6 capable
- 10/100 fdx/hdx, auto negotiation
- WiFi 802.11 b/g/n, 2.4 GHz
- TCP/IP, RTP, UDP, ICMP, DHCP, CGI, HTTP(S), SNMP
- 4 x Relay Outputs (30VDC, 0.5A)
- 4 x Digital Inputs (dry contacts)
- 1 x USB Host (Type A) Interface
- MediaTek MT7620N, Qino Lite Module
- 64MB SDRAM
- 8MB Flash
- RTC Real Time Clock
- Web interface for control / configuration
- 10 x Multicolor LED Status indicators
- Reset & Factory Defaults Button
- Single 9-30V DC supply voltage, 2.5 Watt (without attached USB devices) or
- IEEE 802.3af PoE
- 4.05” x 3.35” x 1.22” / 103mm x 85mm x 31mm
- 160g
