Advantech - ICR-3211B
ICR-3211B is an industrial cellular gateway intended for the North American (NAM) and European (EMEA) markets. The primary purpose of this router is its use in the Category M1 (LTE-M) as well as Narrowband Internet of Things (NB-IoT) services on the cellular LTE network.
Producentens varenummer:
ICR-3211B
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "Advantech - ICR-3211B"
The ICR-3211B industrial cellular gateway is designed for wireless communication in Category M1 (LTE-M) as well as Narrowband Internet of Things (NB-IoT) services on the cellular LTE networks.
LTE Cat M1 is a low-power wide-area (LPWA) air interface that lets you connect IoT and M2M devices with medium data rate requirements (375 kbps upload and download speeds in half-duplex mode). The device has two SIM card readers for carrier failover redundancy. As an addition the router is ready to use internal eSIM (Customization).
In addition to its two independent Ethernet ports, serial ports RS232 and RS485, ICR-3211B has built-in digital I/O connectivity, backup real-time clock and sleep mode support. The built-in Last-gasp supercapacitor ensures safe sending out of information about a power failure or transferring last processed data.
The ICR-3211B places intelligence at the network edge with a powerful Cortex A8 CPU at 1GHz, 512 MB RAM, and 4 GB EMMC FLASH memory in pSLC mode for a long-lifetime and critical industrial applications. 1.3 GB of memory space is allocated for customer SW applications and data.
With an open Linux-based ICR-OS operating system and wide possibilities of programming customer SW applications in Python, C/C++ or browser-based flow editor Node-RED, or even Docker containers the ICR-3211B offers a real open development platform for Industrial IoT applications.
The Advantech existing Router App library (User modules) with apps already developed to enhance specific router functionality including industrial protocol conversions and support of IoT platforms such as MS Azure, Cumulocity, and others are supported on the router.
The router supports VPN tunnel creation using various protocols to ensure safe communications. The router provides diagnostic functions which include automatic monitoring of the wireless and wired connections, automatic restart in case of connection losses, and a hardware watchdog that monitors the router status.
ICR-3211B is easy to manage using WebAccess/DMP, full-featured cloud-based management, provisioning, and monitoring tool for mass deployment.
The WebAccess/VPN is a perfect way how to create secure virtual private networks on the Internet.
Scope of delivery: Advantech - ICR-3211B
LTE Cat M1 is a low-power wide-area (LPWA) air interface that lets you connect IoT and M2M devices with medium data rate requirements (375 kbps upload and download speeds in half-duplex mode). The device has two SIM card readers for carrier failover redundancy. As an addition the router is ready to use internal eSIM (Customization).
In addition to its two independent Ethernet ports, serial ports RS232 and RS485, ICR-3211B has built-in digital I/O connectivity, backup real-time clock and sleep mode support. The built-in Last-gasp supercapacitor ensures safe sending out of information about a power failure or transferring last processed data.
The ICR-3211B places intelligence at the network edge with a powerful Cortex A8 CPU at 1GHz, 512 MB RAM, and 4 GB EMMC FLASH memory in pSLC mode for a long-lifetime and critical industrial applications. 1.3 GB of memory space is allocated for customer SW applications and data.
With an open Linux-based ICR-OS operating system and wide possibilities of programming customer SW applications in Python, C/C++ or browser-based flow editor Node-RED, or even Docker containers the ICR-3211B offers a real open development platform for Industrial IoT applications.
The Advantech existing Router App library (User modules) with apps already developed to enhance specific router functionality including industrial protocol conversions and support of IoT platforms such as MS Azure, Cumulocity, and others are supported on the router.
The router supports VPN tunnel creation using various protocols to ensure safe communications. The router provides diagnostic functions which include automatic monitoring of the wireless and wired connections, automatic restart in case of connection losses, and a hardware watchdog that monitors the router status.
ICR-3211B is easy to manage using WebAccess/DMP, full-featured cloud-based management, provisioning, and monitoring tool for mass deployment.
The WebAccess/VPN is a perfect way how to create secure virtual private networks on the Internet.
Scope of delivery: Advantech - ICR-3211B
Features
- Industrial IoT LPWAN Gateway
- Global LTE Cat.M1 & NB-IoT coverage with GSM fallback
- Powerful CPU with 1.3 GB storage to host customer SW applications
- 2× SIM with cover, eSIM ready

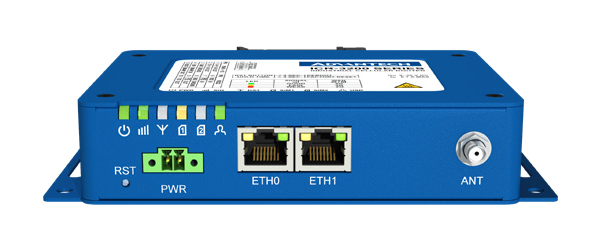

- 2× Ethernet 10/100, 1x RS232, 1x RS485 and I/O
- Robust metal cover with DIN and Wall mount options
- Operational temperature range from -40 °C to +75 °C
- Backup real time clock
- Sleep mode & Power ignition
- Last-gasp Supercapacitor
Technical details
System
CPU: Cortex-A8, 1000 MHz
Memory: RAM – 512 MB; eMMC – 4096 MB (838 MB for Router Apps, 512 MB for customer data)
Watchdog: HW Watchdog
RTC: Battery backup RTC
Interfaces
Ethernet: 2× Ethernet, RJ45, 10/100 Mbps, Isolation 1.5 kV

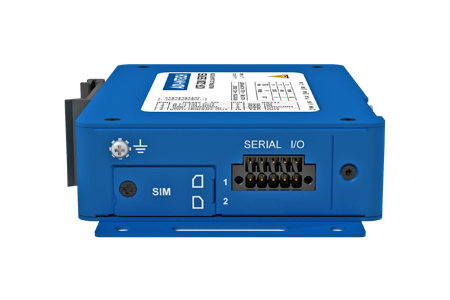

Serial Lines: 1× RS232 (Tx, Rx, RTS, CTS, GND); 1× RS485 (A(-), B(+), GND) (10-pin terminal block)
I/O: 1× Digital Input + 1× Digital Output (10-pin terminal block)
Reset Button: Reboot / Factory reset
LED Indicators: System, 3-level signal strength, Data activity, SIM1/SIM2 status, 2G/4G technology, User, ETH
Cellular Interface
SIM Slots: 2× SIM (Mini SIM – 2FF) with cover, eSIM ready
Antennas: 1× SMA connector
LTE Parameters: Cat M1 (LTE-M) / NB-IoT (cat. NB1) FDD frequencies: B1 (2100 MHz) B2 (1900 MHz), B3 (1800 MHz), B4 (1700 MHz), B5 (850 MHz), B8 (900 MHz), B12, B13 (700 MHz), B18, B19 (850 MHz), B20 (800 MHz), B26 (850 MHz), B28 (700 MHz) TDD frequencies: B39 (1900 MHz) Cat M1 only Transfer rate Cat M1: 375 Kbps (DL), 375 Kbps (UL) Transfer rate Cat NB1: 32 Kbps (DL), 70 Kbps (UL)
EDGE/GPRS Parameters: Supported frequencies: B2 (1900 MHz), B3 (1800 MHz), B5 (850 MHz), B8 (900 MHz); Transfer rate: 296 Kbps (DL) / 236,8 Kbps (UL)
Software
Operating System: ICR-OS (Linux based)
SW Customization: Router App (User Modules)*
Application Development: Open Linux, *Python, BASH, C/C++, *Node-RED, *Docker
Networking Features and Protocols: DHCP, NAT/PAT, SSH, VRRP, PPPoE, SNMP, SMTP, Dynamic DNS client, DNS proxy, VLAN, QoS, *DMVPN, NTP Client/Server, *Routing protocols RIP, BGP, OSPF, IS-IS, NHRP, Backup Routes, Port Forwarding, Host Port Routing, Ethernet Bridging, Load Balancing, IPv6 Dual Stack
Industrial Protocols and IoT: *Modbus RTU/TCP gateway, *IEC 60870-5-101 to 104 gateway, *DF1, *DNP3, *MQTT, *LWM2M
Security: HTTPS, SSH, SFTP, DMZ, Firewall (IP Filtering, MAC address filtering, Inbound and outbound Port filtering) VPN Tunneling – WireGuard, OpenVPN, *EasyVPN, IPsec with IKEv1 and IKEv2, GRE, L2TP, PPTP Authentication – RADIUS, TACACS+, *SCEP Encryption – DES, 3DES, AES, RSA, MD5, SHA
Firmware Management: Automatic firmware updates – server, locally via LAN or remotely via WAN Over-the-Air cellular module firmware updates
Diagnostic/Log: Status – Signal Strength, Data Usage, Detailed Long Term Statistics One CLICK report – Current Configuration, Factory Identification, Routing Table Log – System Log, Reboot Log, Kernel Log Remote Diagnostics (via SSH)
Event Engine: StartUp script & Up/Down script (Own rules based on Digital Inputs, Network Parameters, Data Usage, Timer, Power, Device Temperature) Report Types: SMS, email, SNMP Trap
Configuration: Web server, SSH, Four configuration switchable profiles, Automatic configuration update from server, Backup & Restore configuration
Advanced Software Tools: WebAccess/DMP – Remote Device Provisioning, Monitoring & Management Platform; WebAccess/VPN – Advanced Secure Networking Platform
*Functionality is available with installed Router App (User Module)
Environmental
Power Supply: 9 – 36 V DC (2-pin terminal block)
Consuption: Idle 2.5 W / Average 4 W / Peak 11 W
Sleep Mode: Yes, 100 mW
Operating Temperature: -40 to +75 °C
Storage Temperature: -40 to +85 °C
Humidity: 5 to 95 %
IP Cover: IP30
Physical Characteristics
Dimensions: 31.2 × 94 × 129 mm
Enclosure: Metal Case, Grounding Screw

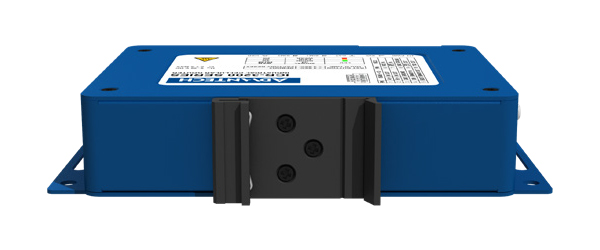

Mounting: Wall Mount kit, DIN Rail
Weight: ICR-3211B, ICR-3211B-DMP - 457g
