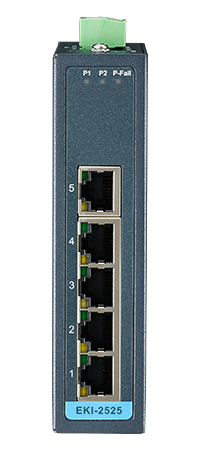

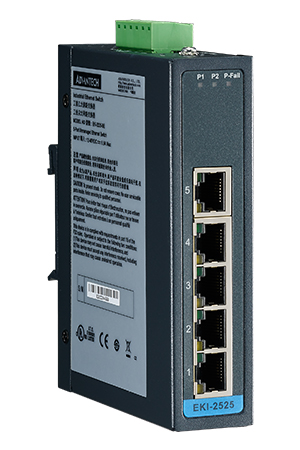

Advantech - EKI-2525-BE
5-Port Industrial Ethernet Switch (Unmanaged)
Producentens varenummer:
EKI-2525-BE
Vores artikelnummer:
262810
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "Advantech - EKI-2525-BE"
The EKI-2525/2528 supports a Fast Ethernet solution. The power supply is redundant at 12 ~ 48 VDC and is protected by a dual protection mechanism: Power Polarity Reverse Protect and a resettable overload current fuse. The former tolerates reverse power wiring, while the latter protects the system from overload currents. When the power supply returns to normal, EKI-2525/2528 automatically resumes operation. Each port of the EKI-2525/2528 has 2 LEDs to indicate connection status, transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED activates the alarm to notify administrators. Technicians can easily verify the hardware status by checking the LED and have easy and quick troubleshooting. EKI-2525/2528 has a compact metal housing with IP30 rating to be protected from dusty industrial environments.
Scope of delivery: Advantech EKI-2525-BE
Scope of delivery: Advantech EKI-2525-BE
| Connection: | 10 /100 |
|---|---|
| Mounting: | DIN-Rail, Panel / Wallmount |
| Port Number: | 5 Ports |
| Power Supply: | 12V DC, 24V DC, 48V DC |
| Temperature Range: | -10°C to 70°C |
| Management: | Layer 2 unmanaged |
Features
- Provides 5 Fast Ethernet ports with Auto MDI/MDI-X
- Supports 10/100 Mbps auto-negotiation
- Compact size with DIN rail/wall mounting and IP30 metal mechanism
- Supports redundant 12 ~ 48 VDC power input and P-fail relay
Technical details
General
Port configuration
Certification
Environment
Ethernet
Mechanism
Power
General
- Number of Ethernet ports: 5
- Power: 12-48VDC
- Technology: Ethernet
- Unmanaged: Yes
Port configuration
- Description: 5 x 10 / 100Base-T (X)
- Total port number: 5
Certification
- EMI: CE, FCC Class A.
- EMS: EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
- Safety: UL 60950-1
Environment
- Operating temperature: -10 to 60 ° C (14 to 140 ° F)
- Storage temperature: -40 to 85 ° C (-40 to 185 ° F)
Ethernet
- Ethernet port number: 5
- RJ45 port connector type: RJ45
- RJ45 transmission distance: 100m
- RJ45 transmission speed: 10/100 Mbps
Mechanism
- Mounting: DIN rail, wall
- Dimensions (W x H x D): 30 x 120 x 95 mm (1.18" x 4.72" x 3.74")
- Housing: metal
- IP rating: IP30
Power
- Power connection: 6-pin detachable screw terminal
- Power consumption: 2.88W
- Power consumption (DC): 12 ~ 48 VDC
- Redundant dual inputs: Yes
