ADDER - PSU-RED2-8
Dual redundant Power Supply Unit - 8 port
Producentens varenummer:
PSU-RED2-8
Vores artikelnummer:
490461
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktets levetid er udløbet!
Opfølgende produkt:
Produktinformation "ADDER - PSU-RED2-8"

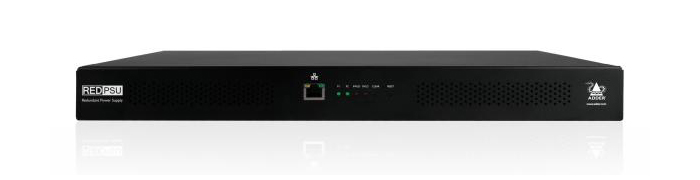

The ADDER Redundant Power Supply (RED-PSU) gives your installation the ability to grow as needed. Housed in a 19-inch, 1U rack module, the RED-PSU offers up to 16 lockable 12 V DC outlets, hot-swappable power supply modules and remote management.
Optional accessories:
- Resilient: equipped with lockable power units that protect against accidental disconnection.
- Robust yet lightweight: small form factor, rack unit 1U
- Ergonomically optimised: All cables and connections can be individually remotely controlled, eliminating potential sources of error and making it easier to maintain your equipment
- Easy installation: eliminate the need for power outlets and power distribution units (PDUs), reducing installation time
Optional accessories:
- RMK4D-R2: Rack mount with dongle bracket for use with AdderLink Infinity units (includes two bolts).
- PSU-RPS-5V: 5VDC converter dongle (2m)
- VSC48: 12VDC connection cable (2m)
Features
Secure connection
HTTP Digest authentication (RFC 2617) ensures web security and requires username and password.
Power integrity
A central microprocessor manages power output and ensures power consistency for multiple devices.
Adaptable to your needs
Available in 8 or 16 ports, limited to 20 watts at 12V.
Built-in redundancy
Removes single points of failure and increases the reliability of your installation.

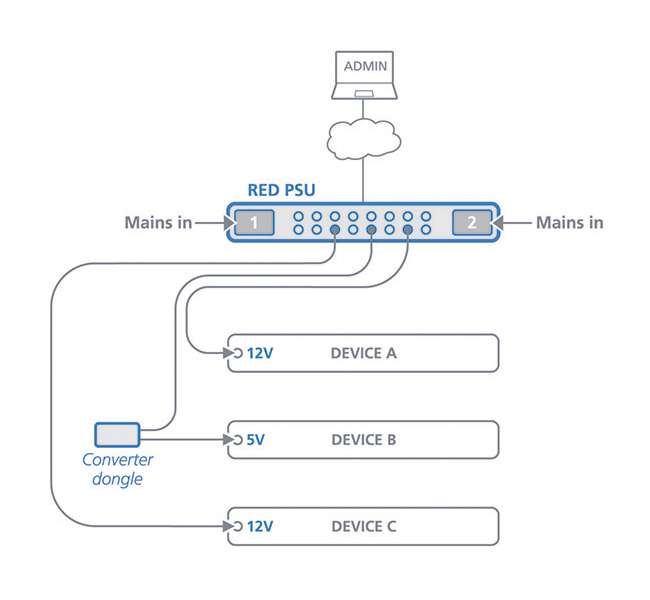

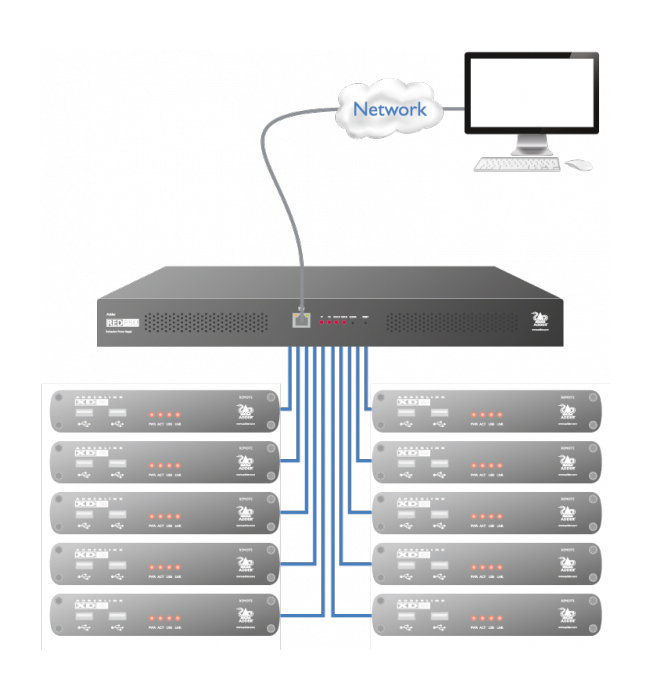

Remote management of your devices
Monitor, troubleshoot and power on/off your devices from your desk.
Secure connection
HTTP Digest authentication (RFC 2617) ensures web security and requires username and password.
Power integrity
A central microprocessor manages power output and ensures power consistency for multiple devices.
Adaptable to your needs
Available in 8 or 16 ports, limited to 20 watts at 12V.
Built-in redundancy
Removes single points of failure and increases the reliability of your installation.
Remote management of your devices
Monitor, troubleshoot and power on/off your devices from your desk.
Technical details
Approvals / Compliance
0 to 50 ° C
Humidity
5 - 90% non-condensing
Altitude
<2000 meters
MTBF
500,000 hours at full load at 50 ° C
Connections - Local unit
Compact enclosure, robust metal construction. Designed for 19-inch rack mounting: 435 mm (17.13 in. (W), 44 mm (1.73 in. (H)), 275 mm (10.8 in. (D)), 4.5 kg (9.9 lbbz)
Power
8 or 16-way locking 3-pin DC plug, 12VDC 20W output. Each output is a Limited Power Service (LPS) according to IEC 60950-1
Software
Approvals / Compliance
- CE
- FCC
- UL
0 to 50 ° C
Humidity
5 - 90% non-condensing
Altitude
<2000 meters
MTBF
500,000 hours at full load at 50 ° C
Connections - Local unit
- 2 x IEC 90-264VAC 47/63Hz input
- Efficiency 92%
- Power factor 0.99 typical
- 1x 8p8c for 10/100 Ethernet connection
Compact enclosure, robust metal construction. Designed for 19-inch rack mounting: 435 mm (17.13 in. (W), 44 mm (1.73 in. (H)), 275 mm (10.8 in. (D)), 4.5 kg (9.9 lbbz)
Power
8 or 16-way locking 3-pin DC plug, 12VDC 20W output. Each output is a Limited Power Service (LPS) according to IEC 60950-1
Software
- Browser versions
- Internet Explorer® 10,11
- Firefox 24 ESR and higher Chrome 43
Tilbehør
ADDER - PSU-RPS-5V
Produktets levetid er udløbet!
Opfølgende produkt:
We will find a suitable replacement product for your requirements - please contact our sales department.
ADDER - RMK4D-R2
Rackmount kit for two units of ADDERLink INFINITY, ADDERView CATx 1000, ADDERView CATxIP 1000 and ADDERView CATxIP 5000
